19432060341 - 19432060341

19432060341

Active
HARTING Technology Group

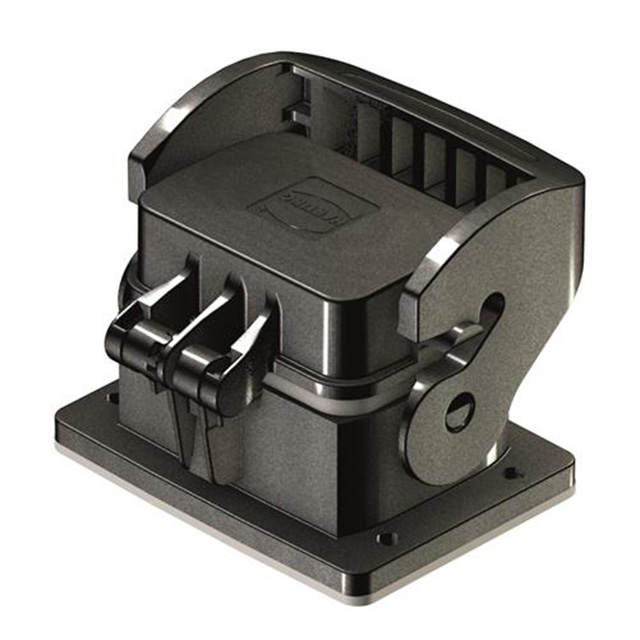

HEAVY DUTY CONNECTOR, IP66, WITH COVER, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 1 LEVER, 6B

Deep-Dive with AI

Search across all available documentation for this part.

19432060341 - 19432060341

19432060341

Active
HARTING Technology Group

HEAVY DUTY CONNECTOR, IP66, WITH COVER, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 1 LEVER, 6B

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

Specification19432060341
Connector TypeBase - Panel Mount
FeaturesCover
Housing ColorBlack
Housing MaterialPolyamide (PA), Nylon, Glass Filled
Ingress ProtectionIP66
Lock LocationLocking Clip (1) on Base Bottom
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Size6B
Size / Dimension [x]81 mm
Size / Dimension [x]3.189 in
Size / Dimension [y]2.362 in
Size / Dimension [y]60 mm
Size / Dimension [z]36.1 mm
Size / Dimension [z]1.421 "
StyleBottom Entry

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 70.16
10$ 53.07
25$ 52.90
NewarkEach 1$ 75.68
5$ 69.67
10$ 65.92
25$ 62.87
50$ 62.07

Description

General part information

19432060 Series

Han-Eco® B is a new series of high-performance plastic hoods and housings, which are suitable for both indoor and outdoor applications. The range complies with standards IEC 61948 and EN 45545-2, offers IP66 protection and substantial weight savings compared to traditional metal housings. With Han-Eco® B, you also have the ability to rear mount inserts. Instead of installing cables through the bulkhead mounted housing, pre-assembled inserts can be directly snapped into the housing from the rear. Both monobloc and modular inserts can be used with the Han-Eco® B, giving you an unparalleled choice of data, signal and power options.
