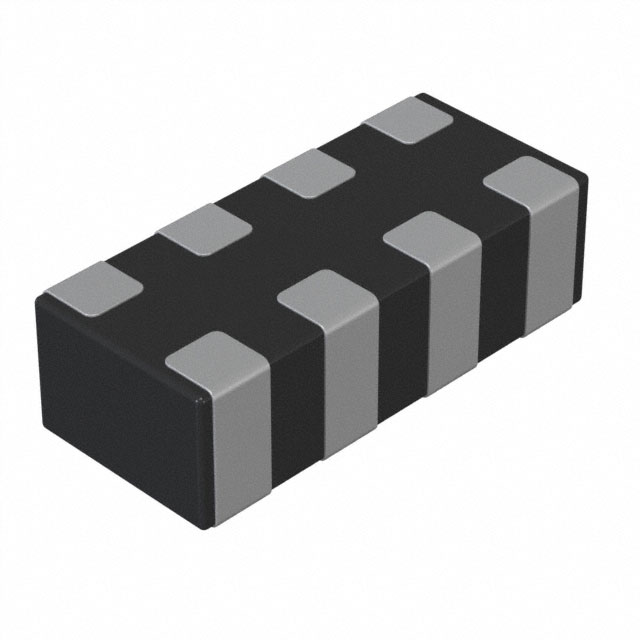

DLP1NDN350HL4L

Active

Murata Power Solutions Inc.

CMC 100MA 4LN 35 OHM SMD

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

CMC 100MA 4LN 35 OHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Number of Lines	Current Rating (Max) [Max]	DC Resistance (DCR) (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Impedance @ Frequency	Voltage Rating - DC	Package / Case	Mounting Type	Height (Max) [Max]	Height (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Murata Power Solutions Inc. DLP1NDN900HL4L	4	60 mA	4.63 Ohm	0.026 in	1.5 mm	0.65 mm	0.059 "	90 Ohms	5 V	0603 (1608 Metric) 8 Lead	Surface Mount	0.5 mm	0.02 in	85 °C	-40 °C
Murata Power Solutions Inc. DLP1NDN350HL4L	4	100 mA	2.25 Ohm	0.026 in	1.5 mm	0.65 mm	0.059 "	35 Ohms	5 V	0603 (1608 Metric) 8 Lead	Surface Mount	0.5 mm	0.02 in	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 1.87

General part information

4 Line Common Mode Choke Surface Mount 35 Ohms @ 100 MHz 100mA DCR 2.25Ohm
