HTEX25201B-4R7MSR
ActiveDelta Electronics/Cyntec
FIXED IND 4.7UH 1.7A 210MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
HTEX25201B-4R7MSR
ActiveDelta Electronics/Cyntec
FIXED IND 4.7UH 1.7A 210MOHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HTEX25201B-4R7MSR |
|---|---|
| Current - Saturation (Isat) | 2 A |
| Current Rating (Amps) | 1.7 A |
| DC Resistance (DCR) | 210 mOhm |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Inductance | 4.7 ÁH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1008 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Supplier Device Package | 1008 |
| Tolerance | 20 % |
HTEX25201 Series
| Part | Material - Core | Inductance | Supplier Device Package | Inductance Frequency - Test | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Shielding | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | DC Resistance (DCR) | Current - Saturation (Isat) | Current Rating (Amps) | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics/Cyntec | |||||||||||||||||||
Delta Electronics/Cyntec | |||||||||||||||||||
Delta Electronics/Cyntec | Metal | 4.7 ÁH | 1008 | 1 MHz | Surface Mount | 1.2 mm | 0.047 in | Shielded | 0.098 " | 2 mm | 2.5 mm | 0.079 in | -55 °C | 125 °C | 20 % | 210 mOhm | 2 A | 1.7 A | 1008 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.35 | |
| 10 | $ 0.29 | |||
| 25 | $ 0.26 | |||
| 50 | $ 0.24 | |||
| 100 | $ 0.21 | |||
| 250 | $ 0.21 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.15 | |||
| Digi-Reel® | 1 | $ 0.35 | ||
| 10 | $ 0.29 | |||
| 25 | $ 0.26 | |||
| 50 | $ 0.24 | |||
| 100 | $ 0.21 | |||
| 250 | $ 0.21 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.15 | |||
| Tape & Reel (TR) | 2000 | $ 0.15 | ||
| 4000 | $ 0.14 | |||
| 6000 | $ 0.14 | |||
| 10000 | $ 0.13 | |||
| 50000 | $ 0.12 | |||
Description
General part information
HTEX25201 Series

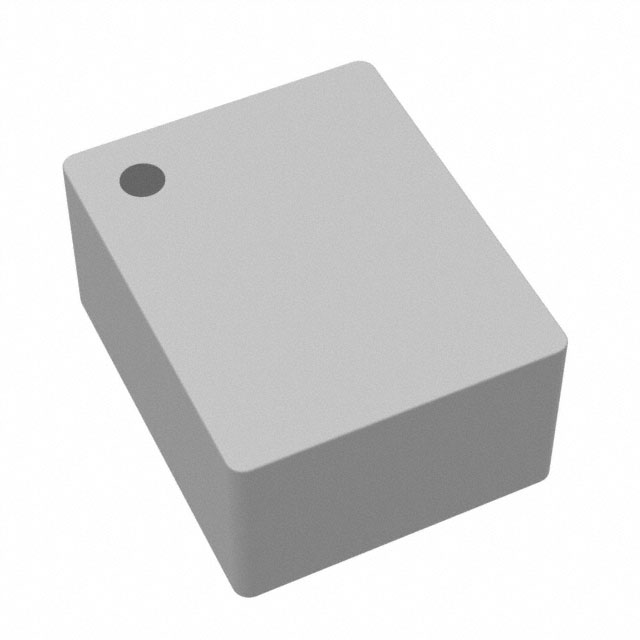

4.7 µH Shielded Inductor 1.7 A 210mOhm Max 1008 (2520 Metric)
