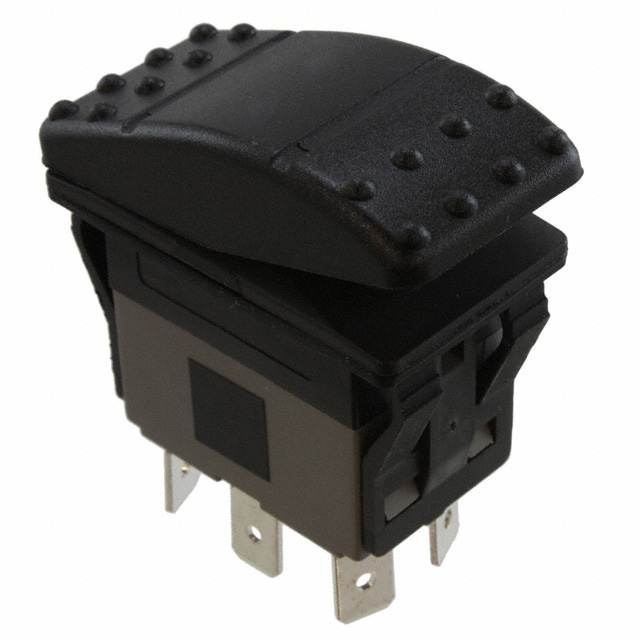

GRB224A2NABA1
ActiveCW Industries
SWITCH ROCKER DPDT 25A 12V
Deep-Dive with AI
Search across all available documentation for this part.
GRB224A2NABA1
ActiveCW Industries
SWITCH ROCKER DPDT 25A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GRB224A2NABA1 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Convex (Reverse V) |
| Circuit | DPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 25 A |
| Electrical Life | 30000 Cycles |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 37 mm |
| Panel Cutout Dimensions [y] | 21.1 mm |
| Switch Function | On-On |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - DC | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 7.13 | |
Description
General part information
GRB224A Series
Rocker Switch DPDT 25A (DC) Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
