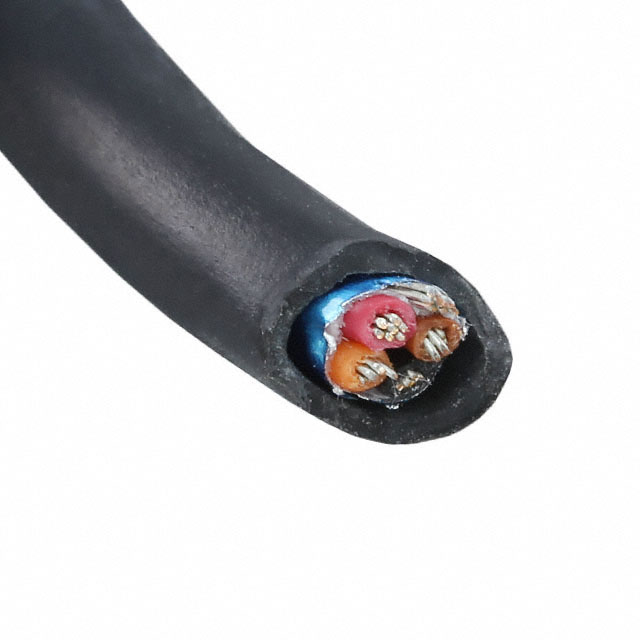

25440/4 BK199
ActiveALPHA WIRE
CABLE 4COND 16AWG BLK SHLD 1000'
Deep-Dive with AI
Search across all available documentation for this part.
25440/4 BK199
ActiveALPHA WIRE
CABLE 4COND 16AWG BLK SHLD 1000'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 25440/4 BK199 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 19 |
| Conductor Strand [custom] | 0.0117 in |
| Features | Rip Cord, Biological Compatibility, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 10.97 mm |
| Jacket (Insulation) Diameter [diameter] | 0.432 in |
| Jacket (Insulation) Material | Polyurethane (PU) |
| Jacket (Insulation) Thickness | 1.6 mm |
| Jacket (Insulation) Thickness | 0.063 in |
| Jacket Color | Black |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Ratings | ISO 10993, UL Style 20952 |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Voltage | 600 V |
| Wire Gauge | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 10.69 | |
Description
General part information
25440/4 Series
4 Conductor Multi-Conductor Cable Black 16 AWG Foil 1000.0' (304.8m)
