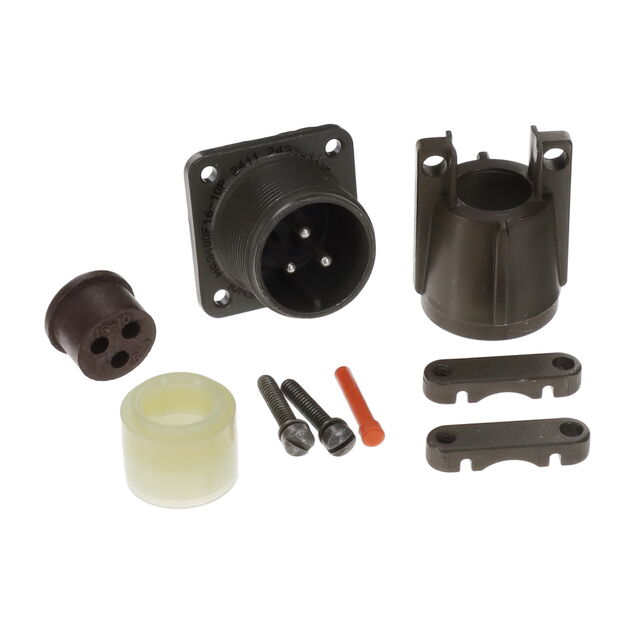

MS3100F16-10P - MS3100F16-10P

MS3100F16-10P

Active
Amphenol Industrial Operations

CONN RCPT MALE 3P SILV SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
MS3100F16-10P - MS3100F16-10P

MS3100F16-10P

Active
Amphenol Industrial Operations

CONN RCPT MALE 3P SILV SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationMS3100F16-10P
ApplicationsMilitary, Marine
Cable Opening [custom]12.7 mm
Cable Opening [custom]0.5 in
ColorOlive Drab
Connector TypeReceptacle, Male Pins
Contact Finish - MatingSilver
Contact MaterialCopper Alloy
FeaturesCable Clamp, Backshell
GradeMilitary
Ingress ProtectionEnvironment Resistant
Insert MaterialNeoprene
Mounting FeatureFlange
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
OrientationN
Primary MaterialMetal
QualificationMIL-DTL-5015
Shell FinishOlive Drab Chromate over Cadmium
Shell MaterialAluminum Alloy
Shell Size - Insert16-10
ShieldingUnshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 107.45
10$ 98.60
25$ 94.81
50$ 91.65
100$ 86.59

Description

General part information

MS3100F16 Series

3 Position Circular Connector Receptacle, Male Pins Solder Cup
