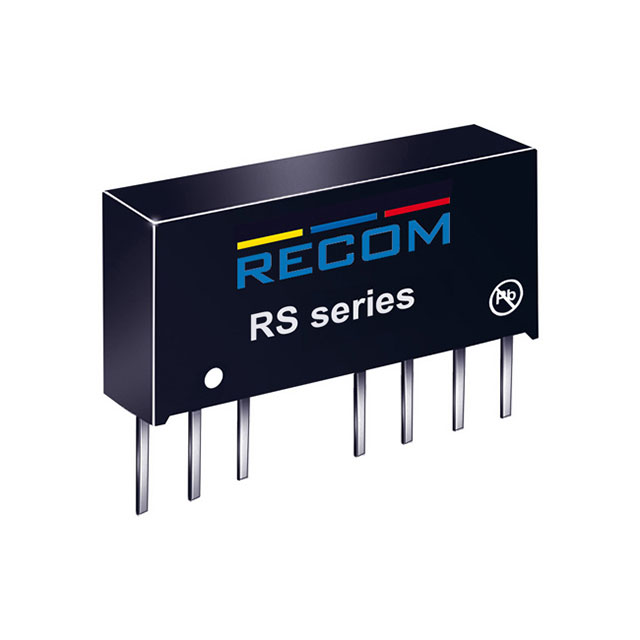

RS-4809DZ

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 2W DC/DC 1KV REG 4:1 18-72VIN +/-9VOUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RS-4809DZ

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 2W DC/DC 1KV REG 4:1 18-72VIN +/-9VOUT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RS-4809DZ

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	111 mA
Current - Output (Max) [Min]	111 mA
Efficiency	80 %
Features	Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-SIP Module
Package / Case	7 Leads
Power (Watts)	2 W
Size / Dimension [x]	21.8 mm
Size / Dimension [x]	0.86 in
Size / Dimension [y]	0.36 "
Size / Dimension [y]	9.2 mm
Size / Dimension [z]	0.44 "
Size / Dimension [z]	11.1 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	72 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1000 V
Voltage - Output 1	9 V
Voltage - Output 2	-9 V

RS-S_D(Z) Series

Isolated DC/DC Converters - Through Hole 2W DC/DC 1kV REG 2:1 9-18Vin +/-12Vout

Part	Type	Power (Watts)	Voltage - Output 1	Mounting Type	Features	Control Features	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Voltage - Output 2	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Isolation	Voltage - Input (Min) [Min]	Number of Outputs	Efficiency	Applications	Current - Output (Max) [Min]	Current - Output (Max) [Max]	Current - Output (Max)	Current - Output (Max)
RECOM Power RS-2405DZ/H3	Isolated Module	2 W	5 V	Through Hole	Remote On/Off SCP	Active Low Enable	36 V	85 °C	-40 °C	8-SIP Module	7 Leads	-5 V	21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	3000 V	9 V	2	77 %	ITE (Commercial) Medical
RECOM Power RS-4809D/H2	Isolated Module	2 W	9 V	Through Hole	Remote On/Off SCP	Active Low Enable	72 V	85 °C	-40 °C	8-SIP Module	7 Leads	-9 V	21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	2000 V	36 V	2	81 %	ITE (Commercial) Medical	111 mA	111 mA
RECOM Power RS-1215S/H2	Isolated Module	2 W	15 V	Through Hole	Remote On/Off SCP	Active Low Enable	18 V	85 °C	-40 °C	8-SIP Module	7 Leads		21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	2000 V	9 V	1	80 %	ITE (Commercial) Medical		134 mA
RECOM Power RS-4809DZ	Isolated Module	2 W	9 V	Through Hole	Remote On/Off SCP	Active Low Enable	72 V	85 °C	-40 °C	8-SIP Module	7 Leads	-9 V	21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	1000 V	18 V	2	80 %	ITE (Commercial)	111 mA	111 mA
RECOM Power RS-1209S/H2	Isolated Module	2 W	9 V	Through Hole	Remote On/Off SCP	Active Low Enable	18 V	85 °C	-40 °C	8-SIP Module	7 Leads		21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	2000 V	9 V	1	78 %	ITE (Commercial) Medical		222 mA
RECOM Power RS-0515S/H3	Isolated Module	2 W	15 V	Through Hole	Remote On/Off SCP	Active Low Enable	9 V	85 °C	-40 °C	8-SIP Module	7 Leads		21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	3000 V	4.5 V	1	80 %	ITE (Commercial) Medical		134 mA
RECOM Power RS-2405D	Isolated Module	2 W	5 V	Through Hole	Remote On/Off SCP	Active Low Enable	36 V	85 °C	-40 °C	8-SIP Module	7 Leads	-5 V	21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	1000 V	18 V	2	78 %	ITE (Commercial)
RECOM Power RS-2415S/H3	Isolated Module	2 W	15 V	Through Hole	Remote On/Off SCP	Active Low Enable	36 V	85 °C	-40 °C	8-SIP Module	7 Leads		21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	3000 V	18 V	1	83 %	ITE (Commercial) Medical		134 mA
RECOM Power RS-483.3D/H3	Isolated Module	2 W	3.3 V	Through Hole	Remote On/Off SCP	Active Low Enable	72 V	85 °C	-40 °C	8-SIP Module	7 Leads	-3.3 V	21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	3000 V	36 V	2	73 %	ITE (Commercial) Medical			250 mA	250 mA
RECOM Power RS-4805S	Isolated Module	2 W	5 V	Through Hole	Remote On/Off SCP	Active Low Enable	72 V			8-SIP Module	7 Leads		21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	1000 V	36 V	1	78 %	ITE (Commercial)		400 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 24.04
		5	$ 23.48
		10	$ 23.30
		25	$ 22.94
		50	$ 21.85
		100	$ 20.60
		250	$ 19.66
		500	$ 19.37
Sager	N/A	1	$ 24.04
		5	$ 23.25
		10	$ 22.18
		25	$ 21.52
		50	$ 21.21
		100	$ 20.60
		250	$ 19.23

Description

General part information

RS-S_D(Z) Series

Isolated DC/DC Converters - Through Hole 2W DC/DC 1kV REG 2:1 9-18Vin +/-12Vout

Documents

Technical documentation and resources
