TR9CS1111T00CIMR6B

Active

GlobTek, Inc.

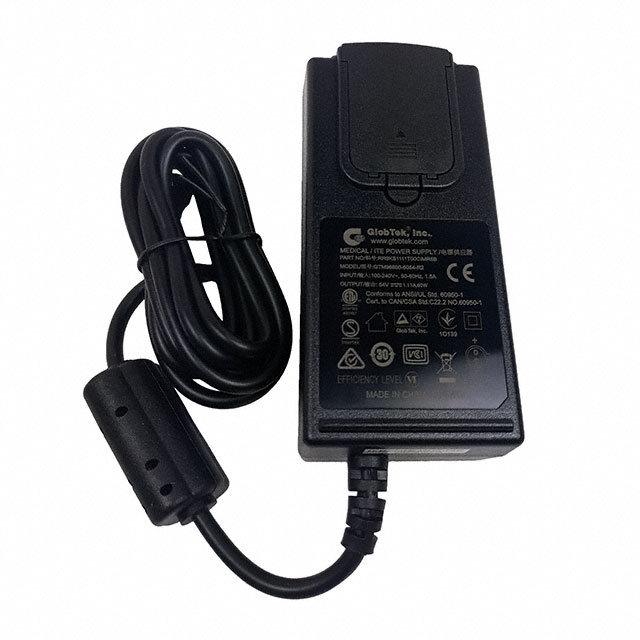

AC/DC DESKTOP ADAPTER 54V 60W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 54V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9CS1111T00CIMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	CE, ETL, UL, CCC, cULus, NOM, FCC, BSMI, UKRSepro, LPS, cETLus, PSE, VCCI, CB, RCM, S-Mark, EAC
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	1.111 A
Efficiency	Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug Kit, 1.3mm x 3.5mm
Power (Watts)	60 W
Region Utilized	International
Size / Dimension [x]	4.63 in
Size / Dimension [x]	117.5 mm
Size / Dimension [y]	2.11 in
Size / Dimension [y]	53.5 mm
Size / Dimension [z]	1.35 "
Size / Dimension [z]	34.2 mm
Standard Number	1310, 60950-1, 60335-1, 62368-1, 60601-1-2, 60601-1-11
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	54 V

Part	Current - Output (Max) [Max]	Applications	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Input Connector	Approval Agency	Region Utilized	Output Connector	Form	Cord Length	Cord Length	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Voltage - Output	Input Type	Power (Watts)	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	No Load Power Consumption [Max]
GlobTek, Inc. TR9CS1111T00CIMR6B	1.111 A	Household Appliances ITE (Commercial) Medical	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	90 VAC	264 VAC	IEC 320-C14	BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	International	1.3mm x 3.5mm Barrel Plug Kit	Desktop (Class I)	1.5 m	59 in	-20 C	40 °C	Level VI	54 V	Cord	60 W	1.35 "	34.2 mm	2.11 in	4.63 in	117.5 mm	53.5 mm	150 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

54V 60 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
