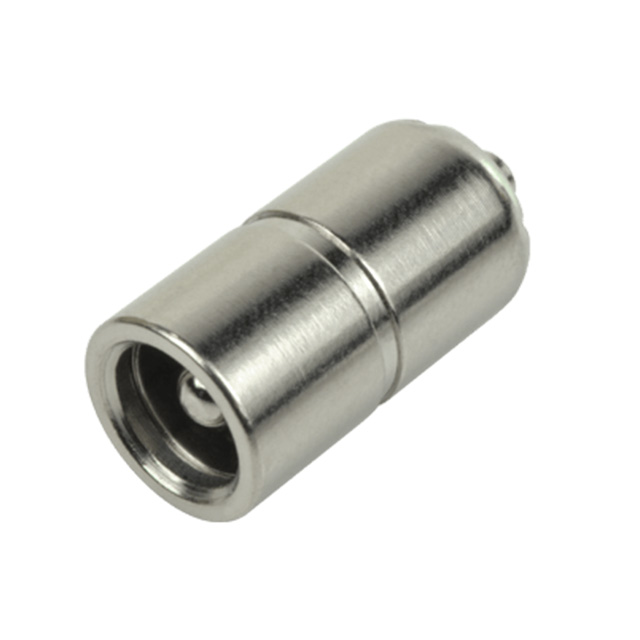

PR-2555B

Active

CUI Devices

POWER JACK, 2.5 X 5.5 MM, STRAIG

Search across all available documentation for this part.

Active

CUI Devices

POWER JACK, 2.5 X 5.5 MM, STRAIG

Technical Specifications

Parameters and characteristics for this part

Specification	PR-2555B

Actual Diameter [diameter]	2.5 mm, 8 mm
Actual Diameter [diameter]	0.315 in, 0.098 in
Body Color	Silver
Body Material	Brass
Connector Type	Jack
Contact Material	Brass
Contact Material - Plating [custom]	Nickel
Current Rating (Amps)	8 A
Gender	Male
Industry Recognized Mating Diameter [diameter]	5.5 mm, 2.5 mm
Industry Recognized Mating Diameter [diameter]	0.098 ", 0.217 "
Insulation Color	Black
Internal Switch(s)	False
Mating Length/Depth	11.5 mm
Mating Length/Depth	0.453 in
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	2
Number of Positions/Contacts [custom]	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Voltage - Rated	20 V

Part	Insulation Color	Body Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material - Plating [custom]	Current Rating (Amps)	Internal Switch(s)	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Mounting Type	Body Material	Shielding	Gender	Mating Length/Depth	Mating Length/Depth	Connector Type	Contact Material	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Actual Diameter [diameter]	Actual Diameter [diameter]	Voltage - Rated
CUI Devices PR-2555B	Black	Silver	70 °C	-25 °C	Nickel	8 A		2.5 mm 5.5 mm	0.098 " 0.217 "	Free Hanging (In-Line)	Brass	Unshielded	Male	11.5 mm	0.453 in	Jack	Brass	2	2	2.5 mm 8 mm	0.098 in 0.315 in	20 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Free Hanging (In-Line)
