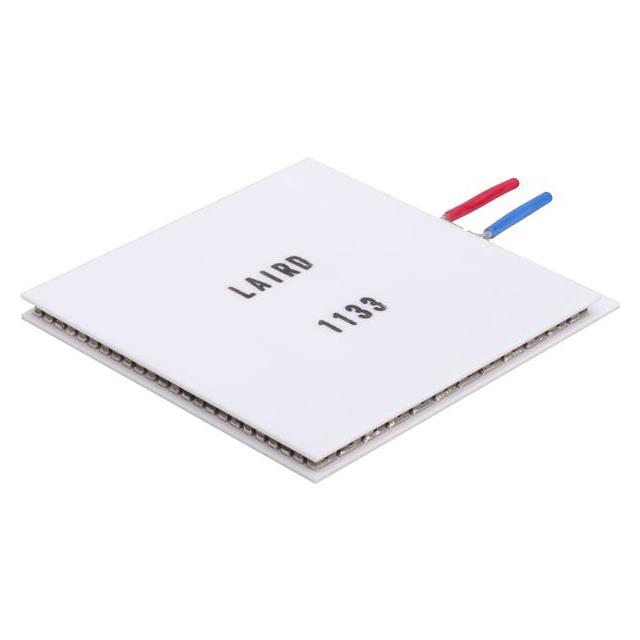

430855-500
ActiveLaird Thermal Systems, Inc.
PELTIER UT8,288,F2,5252,TA,W6
Deep-Dive with AI
Search across all available documentation for this part.
430855-500
ActiveLaird Thermal Systems, Inc.
PELTIER UT8,288,F2,5252,TA,W6
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 430855-500 |
|---|---|
| Current - Max [Max] | 8.5 A |
| Delta Tmax @ Th | 71 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 3.81 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 182.6 W |
| Resistance | 3.58 Ohms |
| Size / Dimension [x] | 52 mm |
| Size / Dimension [y] | 52 mm |
| Voltage - Max [Max] | 35.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 124.65 | |
| 50 | $ 107.48 | |||
| 100 | $ 93.30 | |||
Description
General part information
430855 Series
Peltier Module 182.6W @ 25°C 8.5 A 80°C
