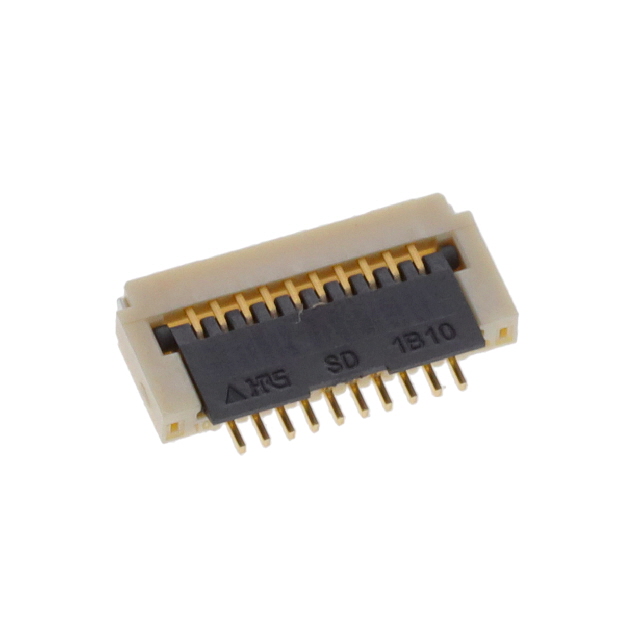

TF12SD-10S-0.5SH(800)

Active

Hirose Electric USA, Inc.

0.5MM PITCH, 1.0MM HEIGHT, SINGLE SIDED LEAD, BOTTOM CONTACT, BACK FLIP(FRONT AXIS TYPE), FPC CONNECTOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTF12 Series Flyer Datasheet

TF12SD-10S-0.5SH(800)

Active

Hirose Electric USA, Inc.

0.5MM PITCH, 1.0MM HEIGHT, SINGLE SIDED LEAD, BOTTOM CONTACT, BACK FLIP(FRONT AXIS TYPE), FPC CONNECTOR

Deep-Dive with AI

DocumentsTF12 Series Flyer Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TF12SD-10S-0.5SH(800)

Actuator Color	Black
Actuator Material	Polyphenylene Sulfide (PPS), Halogen Free
Cable End Type	Notched
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Finish Thickness	39.4 Áin
Contact Finish Thickness	1 Ám
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.2 mm
Flat Flex Type	FPC
Height Above Board [z]	1 mm
Height Above Board [z]	0.039 in
Housing Color	Beige
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Locking Feature	Flip Lock, Backlock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

TF12 Series

Part	Flat Flex Type	Locking Feature	Cable End Type	FFC, FCB Thickness	Mating Cycles	Contact Finish Thickness	Contact Finish Thickness	Actuator Material	Mounting Type	Features	Height Above Board [z]	Height Above Board [z]	Material Flammability Rating	Housing Color	Connector/Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Termination	Contact Finish	Actuator Color	Contact Material	Pitch [x]	Pitch [x]	Current Rating (Amps)	Housing Material	Voltage Rating
Hirose Electric USA, Inc. TF12S-20S-0.5SH(800)	FPC	Backlock Flip Lock	Notched	0.2 mm	20	1.97 Áin	0.05 Ám	Liquid Crystal Polymer (LCP) Halogen Free	Surface Mount Right Angle	Solder Retention Zero Insertion Force (ZIF)	1 mm	0.039 in	UL94 V-0	Beige	Contacts Bottom	85 °C	-55 °C	20	Solder	Gold	Black	Phosphor Bronze	0.5 mm	0.02 in	0.5 A	Liquid Crystal Polymer (LCP) Halogen Free	50 V
Hirose Electric USA, Inc. TF12-9S-0.5SH(800)	FPC	Backlock Flip Lock	Notched	0.2 mm	20	1.97 Áin	0.05 Ám	Liquid Crystal Polymer (LCP) Halogen Free	Surface Mount Right Angle	Solder Retention Zero Insertion Force (ZIF)	1 mm	0.039 in	UL94 V-0	Beige	Contacts Bottom	85 °C	-55 °C	9	Solder	Gold	Black	Phosphor Bronze	0.5 mm	0.02 in	0.5 A	Liquid Crystal Polymer (LCP) Halogen Free	50 V
Hirose Electric USA, Inc. TF12S-6S-0.5SH(800)	FPC	Backlock Flip Lock	Notched	0.2 mm	20	1.97 Áin	0.05 Ám	Liquid Crystal Polymer (LCP) Halogen Free	Surface Mount Right Angle	Solder Retention Zero Insertion Force (ZIF)	1 mm	0.039 in	UL94 V-0	Beige	Contacts Bottom	85 °C	-55 °C	6	Solder	Gold	Black	Phosphor Bronze	0.5 mm	0.02 in	0.5 A	Liquid Crystal Polymer (LCP) Halogen Free	50 V
Hirose Electric USA, Inc. TF12S-13S-0.5SH(800)	FPC	Backlock Flip Lock	Notched	0.2 mm	20	1.97 Áin	0.05 Ám	Liquid Crystal Polymer (LCP) Halogen Free	Surface Mount Right Angle	Solder Retention Zero Insertion Force (ZIF)	1 mm	0.039 in	UL94 V-0	Beige	Contacts Bottom	85 °C	-55 °C	13	Solder	Gold	Black	Phosphor Bronze	0.5 mm	0.02 in	0.5 A	Liquid Crystal Polymer (LCP) Halogen Free	50 V
Hirose Electric USA, Inc. TF12S-15S-0.5SH(800)	FPC	Backlock Flip Lock	Notched	0.2 mm	20	1.97 Áin	0.05 Ám	Liquid Crystal Polymer (LCP) Halogen Free	Surface Mount Right Angle	Solder Retention Zero Insertion Force (ZIF)	1 mm	0.039 in	UL94 V-0	Beige	Contacts Bottom	85 °C	-55 °C	15	Solder	Gold	Black	Phosphor Bronze	0.5 mm	0.02 in	0.5 A	Liquid Crystal Polymer (LCP) Halogen Free	50 V
Hirose Electric USA, Inc. TF12S-4S-0.5SH(800)	FPC	Backlock Flip Lock	Notched	0.2 mm	20	1.97 Áin	0.05 Ám	Liquid Crystal Polymer (LCP) Halogen Free	Surface Mount Right Angle	Solder Retention Zero Insertion Force (ZIF)	1 mm	0.039 in	UL94 V-0	Beige	Contacts Bottom	85 °C	-55 °C	4	Solder	Gold	Black	Phosphor Bronze	0.5 mm	0.02 in	0.5 A	Liquid Crystal Polymer (LCP) Halogen Free	50 V
Hirose Electric USA, Inc. TF12SD-10S-0.5SH(800)	FPC	Backlock Flip Lock	Notched	0.2 mm	20	39.4 Áin	1 Ám	Polyphenylene Sulfide (PPS) Halogen Free	Surface Mount Right Angle	Solder Retention Zero Insertion Force (ZIF)	1 mm	0.039 in	UL94 V-0	Beige	Contacts Bottom	85 °C	-55 °C	10	Solder	Gold	Black	Phosphor Bronze	0.5 mm	0.02 in	0.5 A	Liquid Crystal Polymer (LCP) Halogen Free	50 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.29
		10	$ 1.09
		25	$ 1.04
		50	$ 1.02
		100	$ 0.98
		250	$ 0.89
		500	$ 0.80
		1000	$ 0.71
		2500	$ 0.64
	Digi-Reel®	1	$ 1.29
		10	$ 1.09
		25	$ 1.04
		50	$ 1.02
		100	$ 0.98
		250	$ 0.89
		500	$ 0.80
		1000	$ 0.71
		2500	$ 0.64
	Tape & Reel (TR)	5000	$ 0.58
		10000	$ 0.55
		15000	$ 0.54
Newark	Each (Supplied on Full Reel)	1	$ 1.02
		25000	$ 0.88

Description

General part information

TF12 Series

10 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle

Documents

Technical documentation and resources

TF12 Series Flyer

Datasheet
