NBA-10142

Active

BUD INDUSTRIES

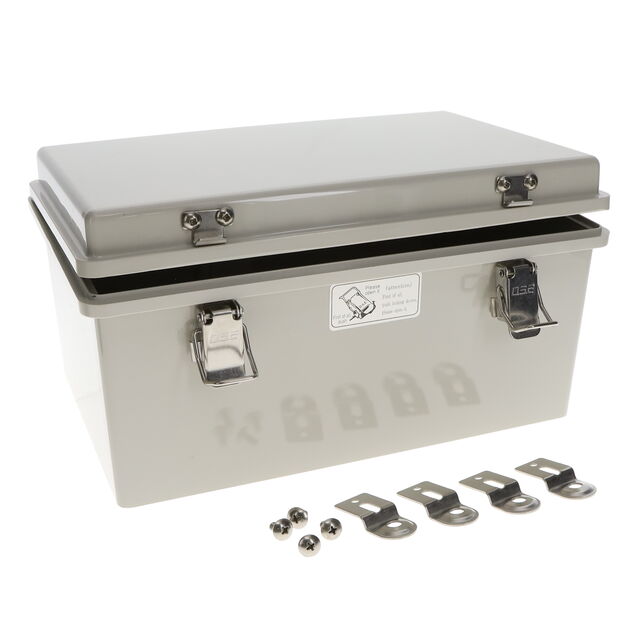

ELECTRICAL ENCLOSURES NEMA ENCLOSURE WITH STAINLESS STEEL HINGES AND LATCHES (11.8 X 7.9 X 6 IN)

Search across all available documentation for this part.

Active

BUD INDUSTRIES

ELECTRICAL ENCLOSURES NEMA ENCLOSURE WITH STAINLESS STEEL HINGES AND LATCHES (11.8 X 7.9 X 6 IN)

Technical Specifications

Parameters and characteristics for this part

Specification	NBA-10142

Area (L x W)	92.7 in²
Area (L x W)	598 cm²
Color	Gray
Container Type	Box
Design	Hinged Door, Lid
Features	PCB Supports, Stainless Steel Hinges
Height [z]	151.71 mm
Height [z]	5.973 in
Material	Plastic, ABS
Material Flammability Rating	UL94 5VB
Ratings	NEMA 4, NEMA 4X, NEMA 12, NEMA 13, NEMA 1, NEMA 2, IP66
Size / Dimension [x]	299.9 mm
Size / Dimension [x]	11.807 in
Size / Dimension [y]	7.85 in
Size / Dimension [y]	199.39 mm
Thickness	0.14 in
Thickness	3.56 mm
Weight	1.5 kg
Weight	3.4 lbs

Electrical Enclosures NEMA Enclosure with Stainless Steel Hinges and Latches (11.8 X 7.9 X 6 In)

Part	Area (L x W)	Area (L x W)	Thickness	Thickness	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Material Flammability Rating	Height [z]	Height [z]	Design	Material	Ratings	Weight	Weight	Features	Color	Container Type
BUD INDUSTRIES NBA-10142	92.7 in²	598 cm²	0.14 in	3.56 mm	299.9 mm	11.807 in	7.85 in	199.39 mm	UL94 5VB	151.71 mm	5.973 in	Hinged Door Lid	Plastic ABS	IP66 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 4 NEMA 4X	1.5 kg	3.4 lbs	PCB Supports Stainless Steel Hinges	Gray	Box

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Electrical Enclosures NEMA Enclosure with Stainless Steel Hinges and Latches (11.8 X 7.9 X 6 In)
