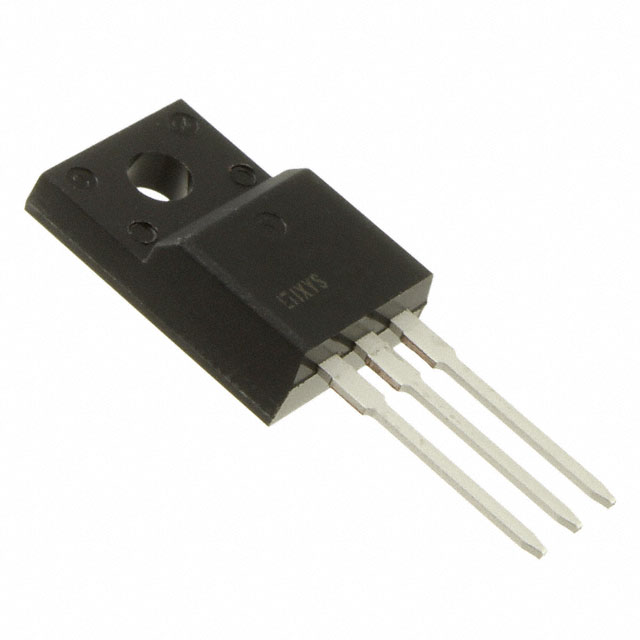

DPG20C300PN
ActiveIXYS
DIODE ARR GP 300V 10A TO220ABFP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DPG20C300PN
ActiveIXYS
DIODE ARR GP 300V 10A TO220ABFP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DPG20C300PN |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 10 A |
| Current - Reverse Leakage @ Vr | 1 µA |
| Diode Configuration | 1 Pair Common Cathode |
| Mounting Type | Through Hole |
| Operating Temperature - Junction [Max] | 175 ░C |
| Operating Temperature - Junction [Min] | -55 C |
| Package / Case | TO-220-3 Full Pack |
| Reverse Recovery Time (trr) | 35 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | TO-220ABFP |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 300 V |
| Voltage - Forward (Vf) (Max) @ If | 1.27 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.21 | |
| 50 | $ 1.77 | |||
| 100 | $ 1.46 | |||
| 500 | $ 1.24 | |||
| 1000 | $ 1.05 | |||
| 2000 | $ 1.00 | |||
| 5000 | $ 0.96 | |||
| 10000 | $ 0.93 | |||
Description
General part information
DPG20C300 Series
Diode Array 1 Pair Common Cathode 300 V 10A Through Hole TO-220-3 Full Pack
