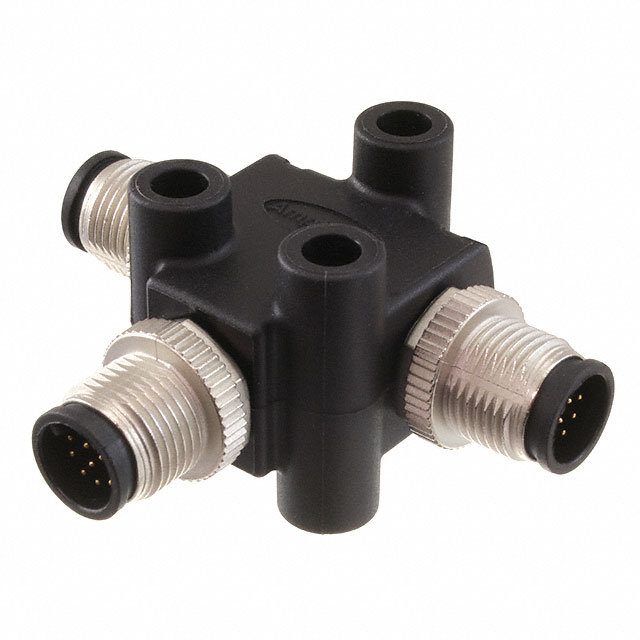

TA-A12M-A12M-A12M-01

Active

Amphenol LTW

CONN T-ADAPTER 12P-12/12P M-M/M

Search across all available documentation for this part.

Active

Amphenol LTW

CONN T-ADAPTER 12P-12/12P M-M/M

Technical Specifications

Parameters and characteristics for this part

Specification	TA-A12M-A12M-A12M-01

Connector Style	Distributor T-Shaped
Convert From (Adapter End)	Male Pins
Convert To (Adapter End)	Male Pins (2)
Housing Material	Thermoplastic
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions (Convert From)	12
Number of Positions (Convert To)	12
Number of Positions (Convert To)	2
Orientation (Convert From)	A
Orientation (Convert To)	A
Shell Size - Insert (Convert From)	M12
Shell Size - Insert (Convert To) [custom]	M12
Shielding	Unshielded

Part	Orientation (Convert To)	Orientation (Convert From)	Convert From (Adapter End)	Shielding	Ingress Protection	Mounting Type	Shell Size - Insert (Convert To) [custom]	Connector Style	Housing Material	Convert To (Adapter End)	Number of Positions (Convert To)	Number of Positions (Convert To)	Shell Size - Insert (Convert From)	Number of Positions (Convert From)	Features
Amphenol LTW TA-A12M-A12F-A12F-01	A	A	Male Pins	Unshielded	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	M12	Distributor T-Shaped	Thermoplastic	Female Sockets (2)	12	2	M12	12	Coupling Nut
Amphenol LTW TA-A12M-A12F-A12M-01	A	A	Male Pins	Unshielded	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	M12	Distributor T-Shaped	Thermoplastic	Female Sockets (1) Male Pins (1)	12	2	M12	12	Coupling Nut
Amphenol LTW TA-A12M-A12M-A12M-01	A	A	Male Pins	Unshielded	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	M12	Distributor T-Shaped	Thermoplastic	Male Pins (2)	12	2	M12	12

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Connector Distributor T-Shaped 12/12 (2) Male Pins/Male Pins (2) Free Hanging (In-Line)
