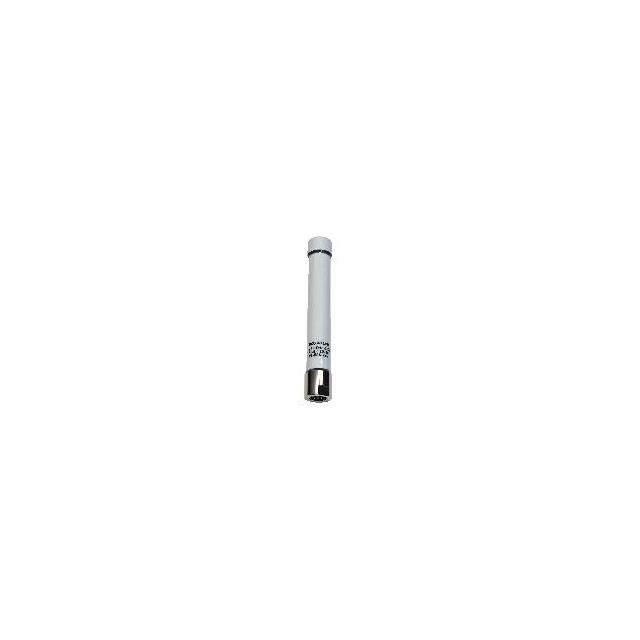

RO2471NM
ActivePulse Electronics
BASE STATION/BROADCAST TRANSMISSION ANTENNA,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RO2471NM
ActivePulse Electronics
BASE STATION/BROADCAST TRANSMISSION ANTENNA,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RO2471NM |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | Wi-Fi |
| Frequency (Center/Band) | 5.37 GHz, 2.45 GHz, 6.5 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 7.12 GHz, 2.5 GHz, 5.85 GHz |
| Frequency Range [Min] | 5.92 GHz, 4.9 GHz, 2.4 GHz |
| Gain | 5.7 dBi, 3.4 dBi |
| Height (Max) [Max] | 6.811 in |
| Height (Max) [Max] | 173 mm |
| Ingress Protection | IP67 |
| Mounting Type | Connector Mount |
| Number of Bands | 3 |
| Power - Max [Max] | 20 W |
| RF Family/Standard | WiFi |
| Termination | N Type Female |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 34.29 | |
| 10 | $ 33.73 | |||
Description
General part information
RO2471 Series
RF ANTENNA Wi-Fi Whip, Straight N Type Female Connector Mount
