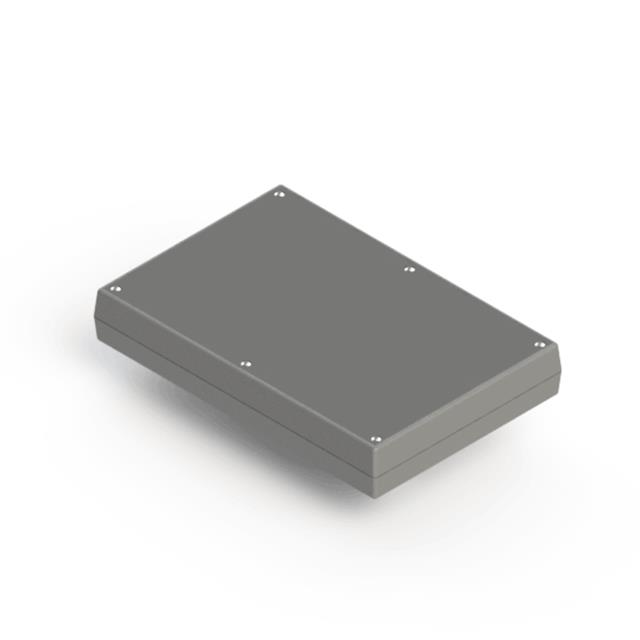

191RI,GY

Active

Serpac

BOX ABS GRAY 9.5"L X 6.34"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 9.5"L X 6.34"W

Technical Specifications

Parameters and characteristics for this part

Specification	191RI,GY

Area (L x W)	60.2 in²
Area (L x W)	388 cm²
Color	Gray
Container Type	Box
Design	Split Sides, Hand Held
Features	Front Access, PCB Supports
Height [z]	38.1 mm
Height [z]	1.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension	161.04 mm, 241.3 mm
Size / Dimension [x]	9.5 "
Size / Dimension [y]	6.34 "
Thickness	2.54 mm
Thickness	0.1 in

Part	Material Flammability Rating	Color	Ratings	Height [z]	Height [z]	Thickness	Thickness	Features	Material	Area (L x W)	Area (L x W)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension	Container Type	Design
Serpac 191R,AL	UL94 HB	Almond	IP40 NEMA 1	38.1 mm	1.5 in	2.54 mm	0.1 in	Front Access PCB Supports	Plastic ABS	60.2 in²	388 cm²	9.5 "	6.34 "	161.04 mm 241.3 mm	Box	Hand Held Split Sides
Serpac 191RI,AL	UL94 HB	Almond	IP40 NEMA 1	38.1 mm	1.5 in	2.54 mm	0.1 in	Front Access PCB Supports	Plastic ABS	60.2 in²	388 cm²	9.5 "	6.34 "	161.04 mm 241.3 mm	Box	Hand Held Split Sides
Serpac 191RI,BK	UL94 HB	Black	IP40 NEMA 1	38.1 mm	1.5 in	2.54 mm	0.1 in	Front Access PCB Supports	Plastic ABS	60.2 in²	388 cm²	9.5 "	6.34 "	161.04 mm 241.3 mm	Box	Hand Held Split Sides
Serpac 191RI,GY	UL94 HB	Gray	IP40 NEMA 1	38.1 mm	1.5 in	2.54 mm	0.1 in	Front Access PCB Supports	Plastic ABS	60.2 in²	388 cm²	9.5 "	6.34 "	161.04 mm 241.3 mm	Box	Hand Held Split Sides
Serpac 191R,GY	UL94 HB	Gray	IP40 NEMA 1	38.1 mm	1.5 in	2.54 mm	0.1 in	Front Access PCB Supports	Plastic ABS	60.2 in²	388 cm²	9.5 "	6.34 "	161.04 mm 241.3 mm	Box	Hand Held Split Sides

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.13

General part information

Box Plastic, ABS Gray Hand Held, Split Sides 9.500" L x 6.340" W (241.30mm x 161.04mm) X 1.500" (38.10mm)

Technical documentation and resources

No documents available
