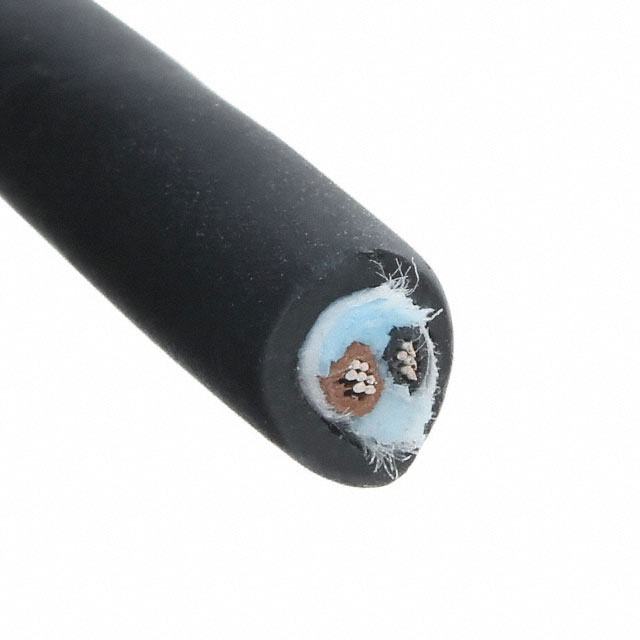

25002 BK005

Active

ALPHA WIRE

CABLE 2COND 22AWG BLACK 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 22AWG BLACK 100'

Technical Specifications

Parameters and characteristics for this part

Specification	25002 BK005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Biological Compatibility
Jacket (Insulation) Diameter [diameter]	4.27 mm
Jacket (Insulation) Diameter [diameter]	0.168 in
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Voltage	300 V
Wire Gauge	22 AWG

Part	Number of Conductors	Length	Length	Jacket Color	Ratings	Features	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Jacket (Insulation) Material	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Length [x]	Length [x]
ALPHA WIRE 25002 BL199	2	1000 ft	304.8 m	Blue	ISO 10993 UL Style 20668	Biological Compatibility Rip Cord	-30 ░C	90 °C	Multi-Conductor	22 AWG	4.27 mm	0.168 in	Poly-Vinyl Chloride (PVC)	Polyurethane (PU)	300 V	7	30 AWG	Copper Tinned
ALPHA WIRE 25002 BK005	2			Black	ISO 10993 UL Style 20668	Biological Compatibility Rip Cord	-30 ░C	90 °C	Multi-Conductor	22 AWG	4.27 mm	0.168 in	Poly-Vinyl Chloride (PVC)	Polyurethane (PU)	300 V	7	30 AWG	Copper Tinned	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Black 22 AWG 100.0' (30.5m)
