09365242601

Active

HARTING Technology Group

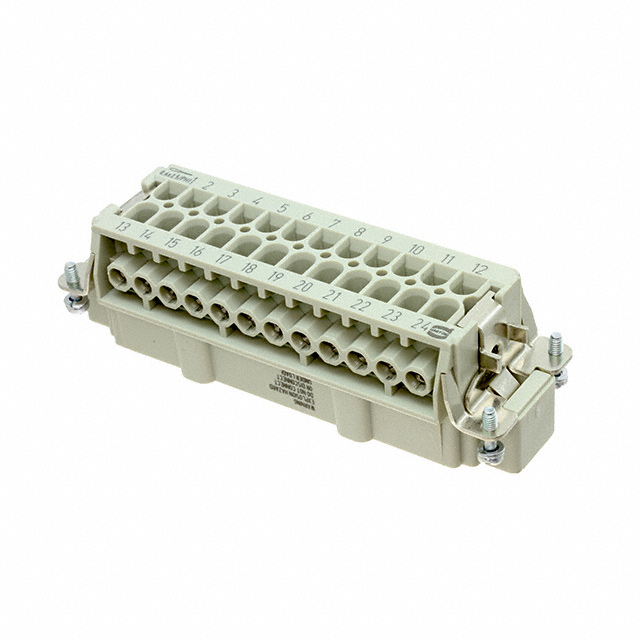

HEAVY DUTY CONNECTOR, HAN EX SERIES, INSERT, 23+PE CONTACTS, 24B, PLUG, SCREW PIN

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN EX SERIES, INSERT, 23+PE CONTACTS, 24B, PLUG, SCREW PIN

Technical Specifications

Parameters and characteristics for this part

Specification	09365242601

Color	Gray
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Size	24 B
Termination Style	Screw
Voltage Rating	90 V

Part	Material Flammability Rating	Termination Style	Voltage Rating	Contact Finish	Current Rating (Amps)	Housing Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Gender	Size	Contact Type	Connector Type
HARTING Technology Group 09365242701	UL94 V-0	Screw	90 V	Silver	16 A	Polycarbonate (PC)	Copper Alloy	-20 C	40 °C	Gray	Female	24 B
HARTING Technology Group 09365242601	UL94 V-0	Screw	90 V	Silver	16 A	Polycarbonate (PC)	Copper Alloy	-20 C	40 °C	Gray	Male	24 B
HARTING Technology Group 09365242702		Crimp	90 V		16 A	Polycarbonate (PC)		-20 C	40 °C	Gray	Female	24 B	Han® E	Insert without Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert Gray 24+Ground Position Screw
