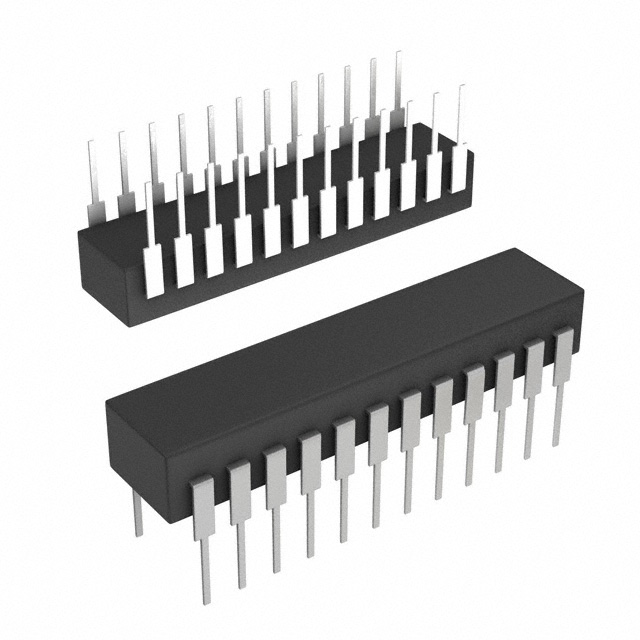

X9401WP24I-2.7

Obsolete

Renesas Electronics Corporation

IC DGTL POT 10KOHM 64TAP 24DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

X9401WP24I-2.7

Obsolete

Renesas Electronics Corporation

IC DGTL POT 10KOHM 64TAP 24DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	X9401WP24I-2.7

Configuration	Potentiometer
Features	Selectable Address
Interface	SPI
Memory Type	Non-Volatile
Mounting Type	Through Hole
Number of Circuits	4
Number of Taps	64
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-DIP
Package / Case	0.6 in
Package / Case	15.24 mm
Resistance - Wiper (Ohms) (Typ)	150 Ohms
Resistance (Ohms)	10k
Supplier Device Package	24-PDIP
Taper	Linear
Temperature Coefficient (Typ)	300 ppm/°C
Tolerance	20 %
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.7 V

X9401 Series

Part	Taper	Configuration	Resistance (Ohms)	Package / Case	Package / Case	Supplier Device Package	Mounting Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Number of Taps	Memory Type	Resistance - Wiper (Ohms) (Typ)	Temperature Coefficient (Typ)	Interface	Tolerance	Number of Circuits	Package / Case [custom]	Package / Case [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Package / Case
Renesas Electronics Corporation X9401WV24Z	Linear	Potentiometer	10k	24-TSSOP	0.173 in 4.4 mm	24-TSSOP	Surface Mount	Selectable Address	70 °C	0 °C	64	Non-Volatile	150 Ohms	300 ppm/°C	SPI	20 %	4
Renesas Electronics Corporation X9401WS24Z-2.7	Linear	Potentiometer	10k	24-SOIC		24-SOIC	Surface Mount	Selectable Address	70 °C	0 °C	64	Non-Volatile	150 Ohms	300 ppm/°C	SPI	20 %	4	7.5 mm	0.295 in	2.7 V	5.5 V
Renesas Electronics Corporation X9401WS24Z	Linear	Potentiometer	10k	24-SOIC		24-SOIC	Surface Mount	Selectable Address	70 °C	0 °C	64	Non-Volatile	150 Ohms	300 ppm/°C	SPI	20 %	4	7.5 mm	0.295 in
Renesas Electronics Corporation X9401WV24IZ	Linear	Potentiometer	10k	24-TSSOP	0.173 in 4.4 mm	24-TSSOP	Surface Mount	Selectable Address	85 °C	-40 °C	64	Non-Volatile	150 Ohms	300 ppm/°C	SPI	20 %	4
Renesas Electronics Corporation X9401WS24IZT1	Linear	Potentiometer	10k	24-SOIC		24-SOIC	Surface Mount	Selectable Address	85 °C	-40 °C	64	Non-Volatile	150 Ohms	300 ppm/°C	SPI	20 %	4	7.5 mm	0.295 in
Renesas Electronics Corporation X9401WV24ZT1	Linear	Potentiometer	10k	24-TSSOP	0.173 in 4.4 mm	24-TSSOP	Surface Mount	Selectable Address	70 °C	0 °C	64	Non-Volatile	150 Ohms	300 ppm/°C	SPI	20 %	4
Renesas Electronics Corporation X9401WP24I-2.7	Linear	Potentiometer	10k	24-DIP		24-PDIP	Through Hole	Selectable Address	85 °C	-40 °C	64	Non-Volatile	150 Ohms	300 ppm/°C	SPI	20 %	4			2.7 V	5.5 V	0.6 in	15.24 mm
Renesas Electronics Corporation X9401WV24Z-2.7T1	Linear	Potentiometer	10k	24-TSSOP	0.173 in 4.4 mm	24-TSSOP	Surface Mount	Selectable Address	70 °C	0 °C	64	Non-Volatile	150 Ohms	300 ppm/°C	SPI	20 %	4			2.7 V	5.5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

X9401 Series

Digital Potentiometer 10k Ohm 4 Circuit 64 Taps SPI Interface 24-PDIP

Documents

Technical documentation and resources
