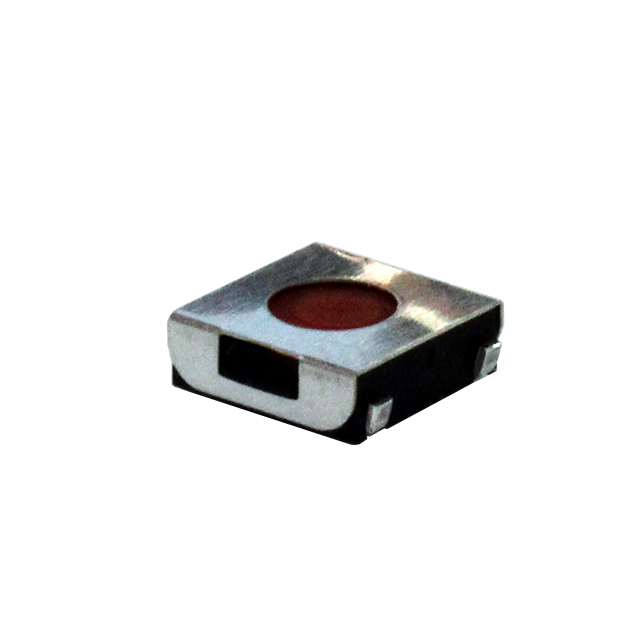

CS1110J3.1

Active

CIT Relay and Switch

ROUND BUTTON 50MA VERTICAL WELDING SPST 1.6N 50V TACTILE SWITCHES ROHS

Search across all available documentation for this part.

Active

CIT Relay and Switch

ROUND BUTTON 50MA VERTICAL WELDING SPST 1.6N 50V TACTILE SWITCHES ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	CS1110J3.1

Actuator Height off PCB, Vertical [z]	3.1 mm
Actuator Material	Polyamide (PA46), Nylon 4/6
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	50 VDC, 0.05 A
Illumination	Non-Illuminated
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6.2 mm
Outline [y]	6.2 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	J Lead

Part	Switch Function	Actuator Orientation	Illumination	Circuit	Mounting Type	Actuator Height off PCB, Vertical [z]	Actuator Material	Switch Travel	Outline [y]	Outline [x]	Termination Style	Contact Rating @ Voltage	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]
CIT Relay and Switch CS1110J3.1	Off-Mom	Top Actuated	Non-Illuminated	SPST-NO	Surface Mount	3.1 mm	Nylon 4/6 Polyamide (PA46)	0.25 mm	6.2 mm	6.2 mm	J Lead	0.05 A 50 VDC	Standard	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
