R6714-00

Obsolete

Harwin Inc.

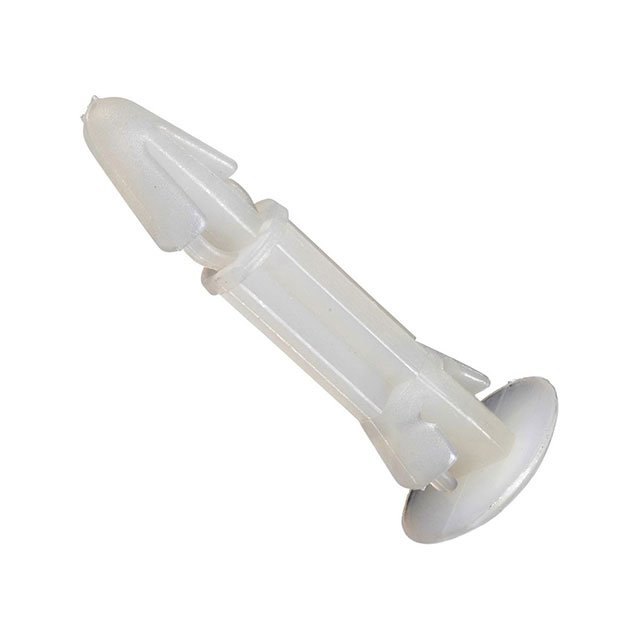

14.00MM SELF-LOCKING PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES

Search across all available documentation for this part.

Obsolete

Harwin Inc.

14.00MM SELF-LOCKING PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	R6714-00

Between Board Height	0.551 in
Between Board Height	14 mm
Features	Locking, Reverse Mounting
Holding Type	Snap Lock
Length - Overall [x]	26.8 mm
Length - Overall [x]	1.055 in
Material	Nylon
Mounting Hole Diameter [diameter]	0.217 in
Mounting Hole Diameter [diameter]	5.5 mm
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.157 "
Support Hole Diameter [diameter]	3.99 mm
Support Panel Thickness [Max]	0.071 in
Support Panel Thickness [Max]	1.8 mm
Support Panel Thickness [Min]	0.02 in
Support Panel Thickness [Min]	0.5 mm

Part	Length - Overall [x]	Length - Overall [x]	Mounting Type	Features	Support Panel Thickness [Max]	Support Panel Thickness [Min]	Support Panel Thickness [Max]	Support Panel Thickness [Min]	Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Holding Type	Between Board Height	Between Board Height
Harwin Inc. R6714-00	26.8 mm	1.055 in	Snap Lock	Locking Reverse Mounting	0.071 in	0.02 in	1.8 mm	0.5 mm	Nylon	0.217 in	5.5 mm	0.157 "	3.99 mm	Snap Lock	0.551 in	14 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Newark	Each	1000	$ 0.20

General part information

Board Support Snap Lock / Snap Lock Nylon 0.551" (14.00mm)

Technical documentation and resources
