3240260

Active

Phoenix Contact

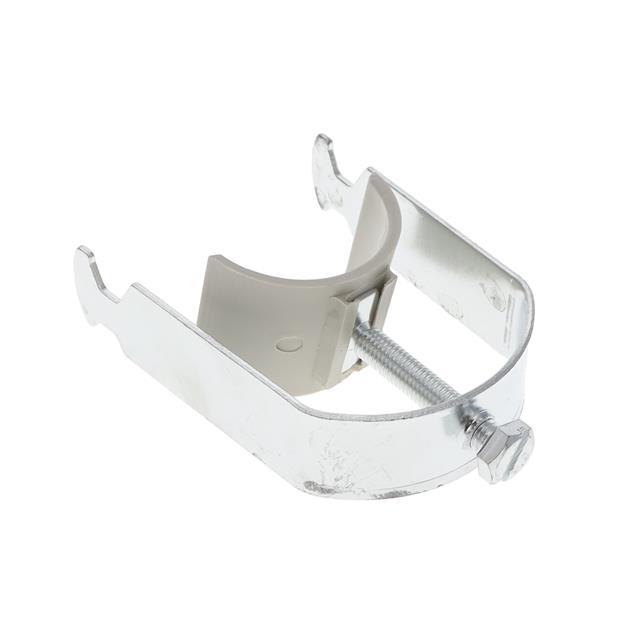

CBL CLAMP STR RLF DIN RAIL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3240260

Active

Phoenix Contact

CBL CLAMP STR RLF DIN RAIL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3240260

Color	Silver
Height [z]	5.709 in
Height [z]	145 mm
Material	Halogen Free, Steel, Plastic Trough
Mounting Type	DIN Rail
Opening Size [Max]	56 mm
Opening Size [Max] [z]	2.205 in
Opening Size [Min]	42 mm
Opening Size [Min] [z]	1.654 in
Type	Clamp, Strain Relief
Type Attributes	Round, Saddle Clamp, Screw Locking
Width [y]	0.945 in
Width [y]	24 mm

WCC Series

Part	Opening Size [Min] [z]	Opening Size [Min] [z]	Opening Size [Max] [z]	Opening Size [Max] [z]	Mounting Type	Width [y]	Width [y]	Length [x]	Length [x]	Height [z]	Height [z]	Type Attributes	Type	Color	Material	Opening Size [Min]	Opening Size [Max]	Length	Length	Opening Size [Min] [custom]	Opening Size [Min] [custom]	Opening Size [Max] [custom]	Opening Size [Max] [custom]	Opening Size [Max] [custom]	Opening Size [Max] [custom]	Opening Size [Min] [custom]	Opening Size [Min] [custom]	Opening Size [Max] [custom]
Phoenix Contact 3240259	38 mm	1.496 in	42 mm	1.654 in	DIN Rail	0.945 in	24 mm	1.858 "	47.2 mm	111 mm	4.37 "	Round Saddle Clamp Screw Locking	Clamp Strain Relief	Silver	Halogen Free Plastic Trough Steel
Phoenix Contact 3240261		2.205 in		2.52 in	DIN Rail	0.945 in	24 mm			154 mm	6.063 in	Round Saddle Clamp Screw Locking	Clamp Strain Relief	Silver	Halogen Free Plastic Trough Steel	56 mm	64 mm	2.717 in	69 mm
Phoenix Contact 3240255					DIN Rail	0.945 in	24 mm	1.181 in	30 mm	88 mm	3.465 in	Round Saddle Clamp Screw Locking	Clamp Strain Relief	Silver	Halogen Free Plastic Trough Steel					22 mm	0.866 in	26 mm	1.024 in
Phoenix Contact 3240254	18 mm	0.709 in	22 mm	0.866 in	DIN Rail	0.945 in	24 mm	1.024 "	26 mm	83 mm	3.268 in	Round Saddle Clamp Screw Locking	Clamp Strain Relief	Silver	Halogen Free Plastic Trough Steel
Phoenix Contact 3240256					DIN Rail	0.945 in	24 mm			92 mm	3.622 in	Round Saddle Clamp Screw Locking	Clamp Strain Relief	Silver	Halogen Free Plastic Trough Steel			1.319 in	33.5 mm	26 mm	1.024 in		1.181 in	30 mm
Phoenix Contact 3240257					DIN Rail	0.945 in	24 mm			97 mm	3.819 in	Round Saddle Clamp Screw Locking	Clamp Strain Relief	Silver	Halogen Free Plastic Trough Steel			1.496 in	38 mm						34 mm	1.181 in	30 mm	1.339 in
Phoenix Contact 3240260		1.654 in		2.205 in	DIN Rail	0.945 in	24 mm			145 mm	5.709 in	Round Saddle Clamp Screw Locking	Clamp Strain Relief	Silver	Halogen Free Plastic Trough Steel	42 mm	56 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.81

Description

General part information

WCC Series

Cable Clamp, Strain Relief Silver DIN Rail 1.654" ~ 2.205" (42.00mm ~ 56.00mm)
