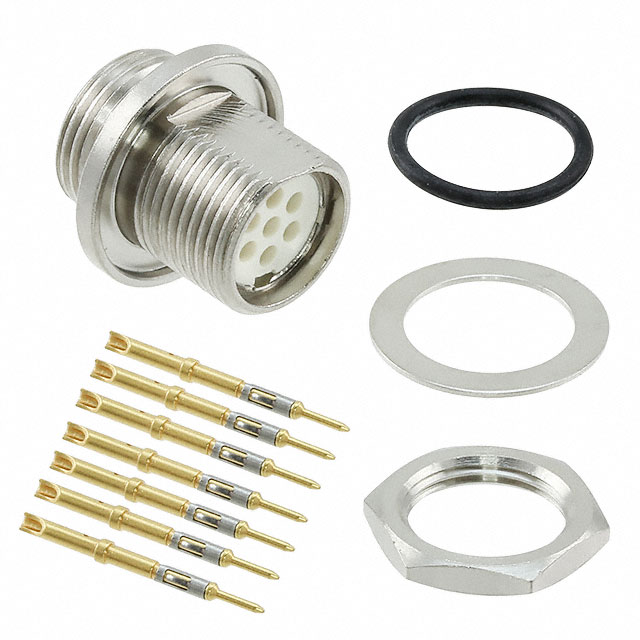

TS2P7M26

Active

Switchcraft Inc.

CONN RCPT MALE 7POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE 7POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	TS2P7M26

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	7
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Crimp, Solder Cup
Voltage Rating	30 VAC

Part	Color	Shielding	Voltage Rating	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Material	Mounting Feature	Primary Material	Orientation	Mounting Type	Shell Finish	Contact Finish - Mating	Insert Material	Number of Positions	Shell Material	Ingress Protection	Applications
Switchcraft Inc. TS2P7M26-BPE	Silver	Shielded	30 VAC	Solder	135 °C	-40 °C	Male Pins Receptacle	Copper Alloy	Bulkhead - Front Side Nut	Metal	Keyed	Panel Mount Through Hole	Electroless Nickel	Gold	Liquid Crystal Polymer (LCP)	7	Copper Alloy	IP66 IP67 IP68	Agriculture Audio General Medical Testing Equipment & Measurement
Switchcraft Inc. TS2P7M26-BP	Silver	Shielded	30 VAC	Solder	135 °C	-40 °C	Male Pins Receptacle	Copper Alloy	Bulkhead - Front Side Nut	Metal	Keyed	Panel Mount Through Hole	Electroless Nickel	Gold	Liquid Crystal Polymer (LCP)	7	Copper Alloy	IP66 IP67 IP68	Agriculture Audio General Medical Testing Equipment & Measurement
Switchcraft Inc. TS2P7M26	Silver	Shielded	30 VAC	Crimp Solder Cup	135 °C	-40 °C	Male Pins Receptacle	Copper Alloy	Bulkhead - Rear Side Nut	Metal	Keyed		Electroless Nickel	Gold	Liquid Crystal Polymer (LCP)	7	Copper Alloy	IP66 IP67 IP68	Agriculture Audio General Medical Testing Equipment & Measurement

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Male Pins Crimp or Solder Cup
