FR01FR10P-W-S

Active

NKK Switches

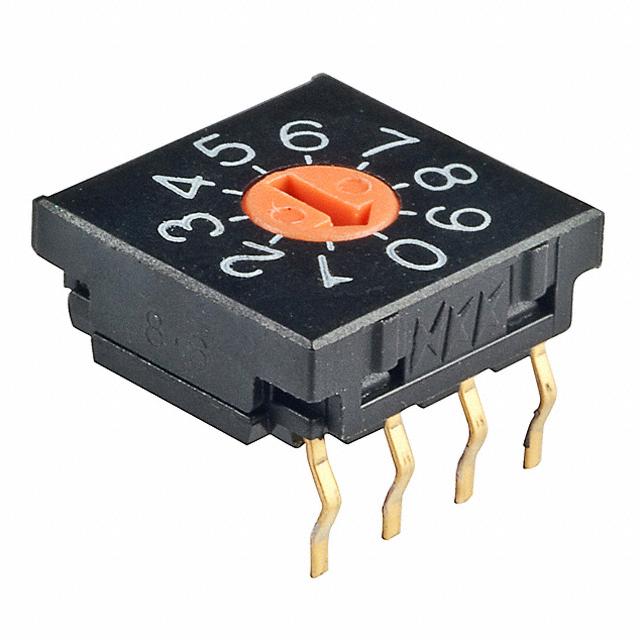

SWITCH DIP N.O./N.C. SP10T 10 FLUSH SCREWDRIVER 0.1A 5VDC PC PINS 1000CYCLES THRU-HOLE STICK

Search across all available documentation for this part.

Active

NKK Switches

SWITCH DIP N.O./N.C. SP10T 10 FLUSH SCREWDRIVER 0.1A 5VDC PC PINS 1000CYCLES THRU-HOLE STICK

Technical Specifications

Parameters and characteristics for this part

Specification	FR01FR10P-W-S

Actuator Level	Flush, Recessed
Actuator Type	Rotary for Tool
Body Material	Polyamide (PA), Nylon, Glass Filled
Circuit	BCD
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	100 mA
Electrical Life	10000 Cycles
Height Above Board	0.15 "
Height Above Board	3.81 mm
Length	10 mm
Length	0.394 in
Mechanical Life	10000 Steps
Mounting Type	Through Hole
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	5 V
Washable	True

Part	Contact Finish	Height Above Board [z]	Height Above Board [z]	Current Rating (Amps)	Actuator Type	Electrical Life	Number of Positions	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Level	Length	Length	Body Material	Mounting Type	Circuit	Voltage Rating	Contact Material	Mechanical Life	Pitch [x]	Pitch	Pitch [x]	Height Above Board	Height Above Board
NKK Switches FR01FR10H	Gold	10 mm	0.394 in	100 mA	Rotary for Tool	10000 Cycles	10	PC Pin	-25 °C	85 °C	Flush Recessed	10 mm	0.394 in	Polyamide (PA) Nylon Glass Filled	Through Hole Right Angle	BCD	5 V	Copper Alloy	10000 Steps	0.1 in	Full	2.54 mm
NKK Switches FR01FR10P-W-S	Gold			100 mA	Rotary for Tool	10000 Cycles	10	PC Pin	-25 °C	85 °C	Flush Recessed	10 mm	0.394 in	Polyamide (PA) Nylon Glass Filled	Through Hole	BCD	5 V	Copper Alloy	10000 Steps	0.1 in	Full	2.54 mm	0.15 "	3.81 mm
NKK Switches FR01FR10H-06XL-S	Gold	10 mm	0.394 in	100 mA	Rotary for Tool	10000 Cycles	10	PC Pin	-25 °C	85 °C	Flush Recessed	10 mm	0.394 in	Polyamide (PA) Nylon Glass Filled	Through Hole Right Angle	BCD	5 V	Copper Alloy	10000 Steps	0.1 in	Full	2.54 mm
NKK Switches FR01FR10H-06XL	Gold	10 mm	0.394 in	100 mA	Rotary for Tool	10000 Cycles	10	PC Pin	-25 °C	85 °C	Flush Recessed	10 mm	0.394 in	Polyamide (PA) Nylon Glass Filled	Through Hole Right Angle	BCD	5 V	Copper Alloy	10000 Steps	0.1 in	Full	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch BCD 10 Position Through Hole Rotary for Tool Actuator 100mA 5VDC
