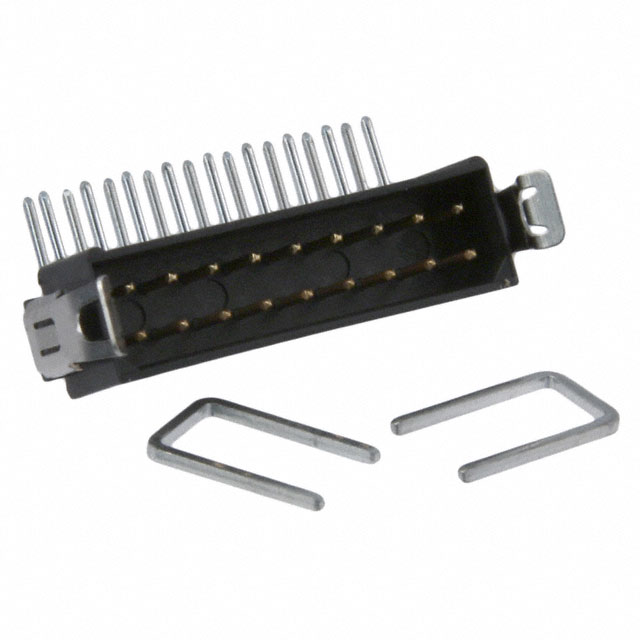

M80-8511842

Active

Harwin Inc.

9+9 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. LATCHES ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80, M83 Series Spec Sheet Datasheet +2

M80-8511842

Active

Harwin Inc.

9+9 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. LATCHES ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80, M83 Series Spec Sheet Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-8511842

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Fastening Type	Latch Lock
Features	Strain Relief Clips
Insulation Color	Black
Insulation Height	5.97 mm
Insulation Height	0.235 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 V

M80-851 Series

Part	Features	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Termination	Contact Shape	Mounting Type	Shrouding	Insulation Color	Contact Finish - Mating	Insulation Height	Insulation Height	Style	Current Rating (Amps)	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Number of Rows	Contact Length - Post	Contact Length - Post	Insulation Material	Number of Positions	Connector Type	Fastening Type	Contact Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions
Harwin Inc. M80-8510645	Strain Relief Clips	0.079 in	2 mm	Male Pin	0.079 in	2 mm	Solder	Circular	Through Hole Right Angle	Shrouded - 4 Wall	Black	Gold	5.97 mm	0.235 in	Board to Board Cable	2.2 A	All	29.5 Áin	0.75 Ám	800 V	2	0.118 in	3 mm	Polyphenylene Sulfide (PPS) Glass Filled	6	Header	Latch Lock	Phosphor Bronze	UL94 V-0	-55 °C	125 °C
Harwin Inc. M80-8510845	Strain Relief Clips	0.079 in	2 mm	Male Pin	0.079 in	2 mm	Solder	Circular	Through Hole Right Angle	Shrouded - 4 Wall	Black	Gold	5.97 mm	0.235 in	Board to Board Cable	2.2 A	All	29.5 Áin	0.75 Ám	800 V	2	0.118 in	3 mm	Polyphenylene Sulfide (PPS) Glass Filled	8	Header	Latch Lock	Phosphor Bronze	UL94 V-0	-55 °C	125 °C
Harwin Inc. M80-8511442	Strain Relief Clips	0.079 in	2 mm	Male Pin	0.079 in	2 mm	Solder	Circular	Through Hole Right Angle	Shrouded - 4 Wall	Black	Gold	5.97 mm	0.235 in	Board to Board Cable	2.2 A	All	29.5 Áin	0.75 Ám	800 V	2	0.118 in	3 mm	Polyphenylene Sulfide (PPS) Glass Filled	14	Header	Latch Lock	Phosphor Bronze	UL94 V-0	-55 °C	125 °C	Tin	3 µm	118.1 µin
Harwin Inc. M80-8511842	Strain Relief Clips	0.079 in	2 mm	Male Pin	0.079 in	2 mm	Solder	Circular	Through Hole Right Angle	Shrouded - 4 Wall	Black	Gold	5.97 mm	0.235 in	Board to Board Cable	2.2 A	All	29.5 Áin	0.75 Ám	800 V	2	0.118 in	3 mm	Polyphenylene Sulfide (PPS) Glass Filled	18	Header	Latch Lock	Phosphor Bronze	UL94 V-0	-55 °C	125 °C	Tin	3 µm	118.1 µin
Harwin Inc. M80-8511642	Strain Relief Clips	0.079 in	2 mm	Male Pin	0.079 in	2 mm	Solder	Circular	Through Hole Right Angle	Shrouded - 4 Wall	Black	Gold	5.97 mm	0.235 in	Board to Board Cable	2.2 A	All	29.5 Áin	0.75 Ám	800 V	2	0.118 in	3 mm	Polyphenylene Sulfide (PPS) Glass Filled		Header	Latch Lock	Phosphor Bronze	UL94 V-0	-55 °C	125 °C	Tin	3 µm	118.1 µin	16
Harwin Inc. M80-8513442	Strain Relief Clips	0.079 in	2 mm	Male Pin	0.079 in	2 mm	Solder	Circular	Through Hole Right Angle	Shrouded - 4 Wall	Black	Gold	5.97 mm	0.235 in	Board to Board Cable	2.2 A	All	29.5 Áin	0.75 Ám	800 V	2	0.118 in	3 mm	Polyphenylene Sulfide (PPS) Glass Filled	34	Header	Latch Lock	Phosphor Bronze	UL94 V-0	-55 °C	125 °C	Tin	3 µm	118.1 µin
Harwin Inc. M80-8512042	Strain Relief Clips	0.079 in	2 mm	Male Pin	0.079 in	2 mm	Solder	Circular	Through Hole Right Angle	Shrouded - 4 Wall	Black	Gold	5.97 mm	0.235 in	Board to Board Cable	2.2 A	All	29.5 Áin	0.75 Ám	800 V	2	0.118 in	3 mm	Polyphenylene Sulfide (PPS) Glass Filled	20	Header	Latch Lock	Phosphor Bronze	UL94 V-0	-55 °C	125 °C	Tin	3 µm	118.1 µin
Harwin Inc. M80-8511245	Strain Relief Clips	0.079 in	2 mm	Male Pin	0.079 in	2 mm	Solder	Circular	Through Hole Right Angle	Shrouded - 4 Wall	Black	Gold	5.97 mm	0.235 in	Board to Board Cable	2.2 A	All	29.5 Áin	0.75 Ám	800 V	2	0.118 in	3 mm	Polyphenylene Sulfide (PPS) Glass Filled	12	Header	Latch Lock	Phosphor Bronze	UL94 V-0	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 9.76
		10	$ 7.49
		100	$ 5.82
		500	$ 4.94
		1000	$ 4.62
Newark	Each	100	$ 6.72
		250	$ 6.02
		500	$ 5.67
		1000	$ 4.98
		2500	$ 4.73

Description

General part information

M80-851 Series

Connector Header Through Hole, Right Angle 18 position 0.079" (2.00mm)
