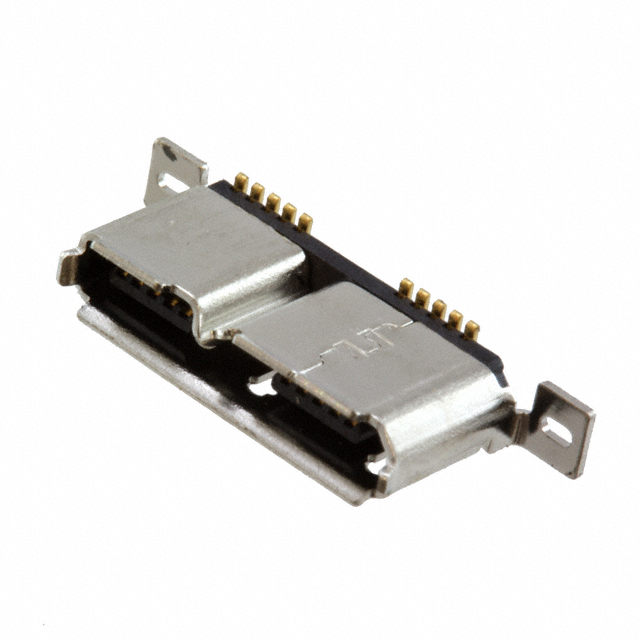

897-10-010-00-300002

Active

Mill-Max Manufacturing Corp.

CONN RCPT USB3.0 MICRO B SMD

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN RCPT USB3.0 MICRO B SMD

Technical Specifications

Parameters and characteristics for this part

Specification	897-10-010-00-300002

Connector Type	USB - micro B
Contact Finish	Gold
Current Rating (Amps)	1.5 A
Features	Solder Retention, Board Guide
Gender	Receptacle
Material Flammability Rating	UL94 V-0
Mating Cycles	10000
Mounting Feature	Vertical
Mounting Type	Surface Mount
Number of Contacts	10
Number of Ports	1
Shell/Shielding Material	Stainless, Steel
Shielding	Shielded
Termination	Solder
Voltage - Rated	30 VAC

Part	Mating Cycles	Termination	Gender	Shielding	Number of Ports	Features	Shell/Shielding Material	Material Flammability Rating	Connector Type	Current Rating (Amps)	Mounting Feature	Voltage - Rated	Mounting Type	Contact Finish	Number of Contacts
Mill-Max Manufacturing Corp. 897-10-010-00-300002	10000	Solder	Receptacle	Shielded	1	Board Guide Solder Retention	Stainless Steel	UL94 V-0	USB - micro B	1.5 A	Vertical	30 VAC	Surface Mount	Gold	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB - micro B USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 10 Position Surface Mount
