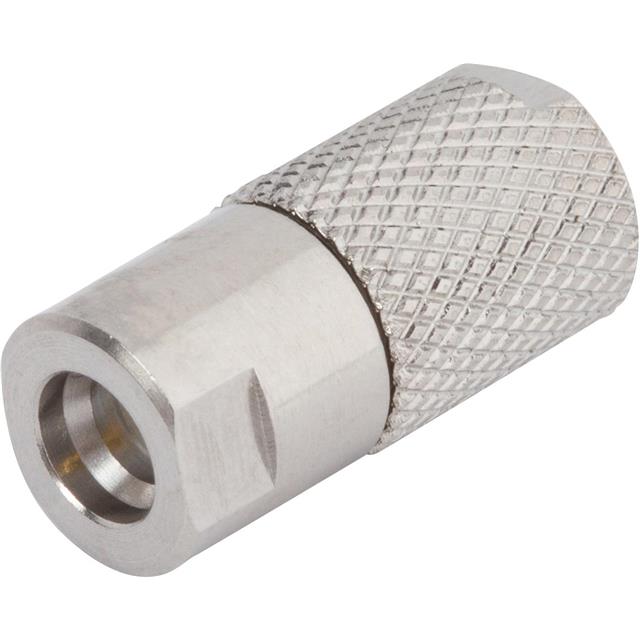

SF8012-6102

Active

Amphenol SV Microwave

CONN TERMINATOR PLUG SMP 50 OHM

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN TERMINATOR PLUG SMP 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	SF8012-6102

Body Material	Stainless Steel
Connector Type	Male Pin, Plug
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Smooth Bore
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Features	Body Material	Frequency - Max [Max]	Mounting Type	Connector Type	Contact Material	Impedance	Dielectric Material	Contact Finish
Amphenol SV Microwave SF8012-6101	Limited Detent	Stainless Steel	18 GHz	Cap Free Hanging	Male Pin Plug	Beryllium Copper	50 Ohms	Polytetrafluoroethylene (PTFE)	Gold
Amphenol SV Microwave SF8012-6102	Smooth Bore	Stainless Steel	18 GHz	Cap Free Hanging	Male Pin Plug	Beryllium Copper	50 Ohms	Polytetrafluoroethylene (PTFE)	Gold
Amphenol SV Microwave SF8012-6103	Catcher's Mitt	Stainless Steel	18 GHz	Cap Free Hanging	Male Pin Plug	Beryllium Copper	50 Ohms	Polytetrafluoroethylene (PTFE)	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	25	$ 149.97

General part information

Terminator Coax Connector Plug, Male Pin SMP 50 Ohms
