346-022-520-103

Active

EDAC Inc.

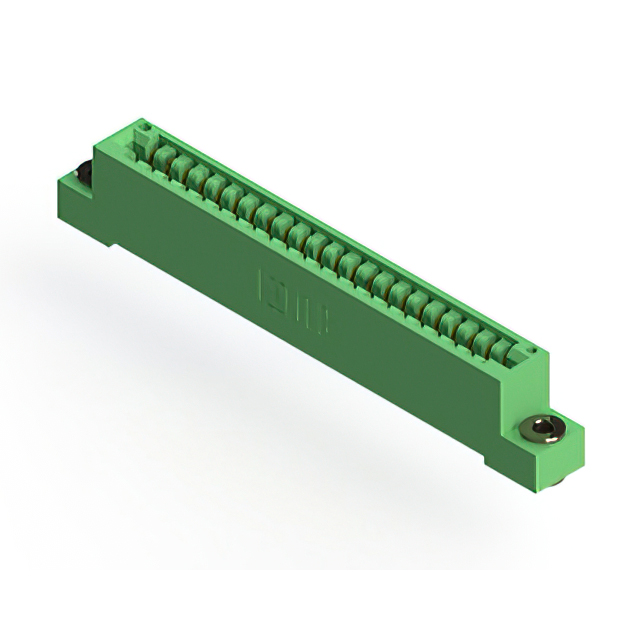

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 22 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

346-022-520-103

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 22 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	346-022-520-103

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	22 positions
Number of Positions/Bay/Row [custom]	22
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Single
Termination	Solder
Termination Rows	1

346-022 Series

...

Part	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination Rows	Number of Rows	Termination	Gender	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Color	Material - Insulation	Pitch [x]	Pitch [x]	Card Type	Contact Type	Contact Material	Read Out	Features	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Mounting Type	Number of Positions/Bay/Row [custom]	Contact Finish	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 346-022-540-658	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	Wire Wrap	Female	22 positions	-40 °C	105 ░C	Green	Polyester Thermoplastic	0.125 in	3.18 mm	Non Specified - Single Edge	Cantilever	Copper Alloy	Single	Card Guides	10 Áin	0.25 Ám	4-40 Threaded Insert Top Mount Opening	Through Hole	22	Gold
EDAC Inc. 346-022-520-103	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	Solder	Female	22 positions	-40 °C	105 ░C	Green	Polyester Thermoplastic	0.125 in	3.18 mm	Non Specified - Single Edge	Cantilever	Copper Alloy	Single		10 Áin	0.25 Ám	Floating Bobbin Flush Mount	Through Hole	22	Gold	0.116 in	2.95 mm
EDAC Inc. 346-022-520-112	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	Solder	Female	22 positions	-40 °C	105 ░C	Green	Polyester Thermoplastic	0.125 in	3.18 mm	Non Specified - Single Edge	Cantilever	Copper Alloy	Single		10 Áin	0.25 Ám	Flush Mount Side Opening Unthreaded	Through Hole	22	Gold	0.128 "	3.25 mm
EDAC Inc. 346-022-540-104	1.37 mm	0.054 "	1.78 mm	0.07 in	1	1	Wire Wrap	Female	22 positions	-40 °C	105 ░C	Green	Polyester Thermoplastic	0.125 in	3.18 mm	Non Specified - Single Edge	Cantilever	Copper Alloy	Single		10 Áin	0.25 Ám	Flush Mount Top Opening Unthreaded	Through Hole	22	Gold	0.156 in	3.96 mm
EDAC Inc. 346-022-559-208	1.37 mm	0.054 "	1.78 mm	0.07 in	2	2	Solder Wire Wrap	Female	22 positions	-40 °C	105 ░C	Green	Polyester Thermoplastic	0.125 in	3.18 mm	Non Specified - Dual Edge	Cantilever	Copper Alloy	Dual		10 Áin	0.25 Ám	4-40 Flush Mount Threaded Insert Top Opening	Through Hole Right Angle	11	Gold
EDAC Inc. 346-022-559-207	1.37 mm	0.054 "	1.78 mm	0.07 in	2	2	Solder Wire Wrap	Female	22 positions	-40 °C	105 ░C	Green	Polyester Thermoplastic	0.125 in	3.18 mm	Non Specified - Dual Edge	Cantilever	Copper Alloy	Dual		10 Áin	0.25 Ám	Flush Mount M3 Threaded Insert Top Opening	Through Hole Right Angle	11	Gold
EDAC Inc. 346-022-560-258	1.37 mm	0.054 "	1.78 mm	0.07 in	2	2	Solder	Female	22 positions	-40 °C	105 ░C	Green	Polyester Thermoplastic	0.125 in	3.18 mm	Non Specified - Dual Edge	Cantilever	Copper Alloy	Dual		10 Áin	0.25 Ám	4-40 Flush Mount Threaded Insert Top Opening	Board Edge Straddle Mount	11	Gold
EDAC Inc. 346-022-522-804	1.37 mm	0.054 "	1.78 mm	0.07 in	2	2	Solder	Female	22 positions	-40 °C	105 ░C	Green	Polyester Thermoplastic	0.125 in	3.18 mm	Non Specified - Dual Edge	Cantilever	Copper Alloy	Dual		10 Áin	0.25 Ám	Top Mount Opening Unthreaded	Through Hole	11	Gold	0.156 in	3.96 mm
EDAC Inc. 346-022-559-807	1.37 mm	0.054 "	1.78 mm	0.07 in	2	2	Solder Wire Wrap	Female	22 positions	-40 °C	105 ░C	Green	Polyester Thermoplastic	0.125 in	3.18 mm	Non Specified - Dual Edge	Cantilever	Copper Alloy	Dual		10 Áin	0.25 Ám	M3 Threaded Insert Top Mount Opening	Through Hole Right Angle	11	Gold
EDAC Inc. 346-022-522-807	1.37 mm	0.054 "	1.78 mm	0.07 in	2	2	Solder	Female	22 positions	-40 °C	105 ░C	Green	Polyester Thermoplastic	0.125 in	3.18 mm	Non Specified - Dual Edge	Cantilever	Copper Alloy	Dual		10 Áin	0.25 Ám	M3 Threaded Insert Top Mount Opening	Through Hole	11	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 9.70
Newark	Each	25	$ 15.88
		50	$ 15.36
		100	$ 14.34
		250	$ 13.83
		500	$ 13.06

Description

General part information

346-022 Series

22 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
