VND7NV0413TR
ObsoleteIC PWR DRIVER N-CHANNEL 1:1 DPAK
Deep-Dive with AI
Search across all available documentation for this part.
VND7NV0413TR
ObsoleteIC PWR DRIVER N-CHANNEL 1:1 DPAK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VND7NV0413TR |
|---|---|
| Current - Output (Max) [Max] | 6 A |
| Fault Protection | Over Temperature, Current Limiting (Fixed), Over Voltage |
| Input Type | Non-Inverting |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Low Side |
| Output Type | N-Channel |

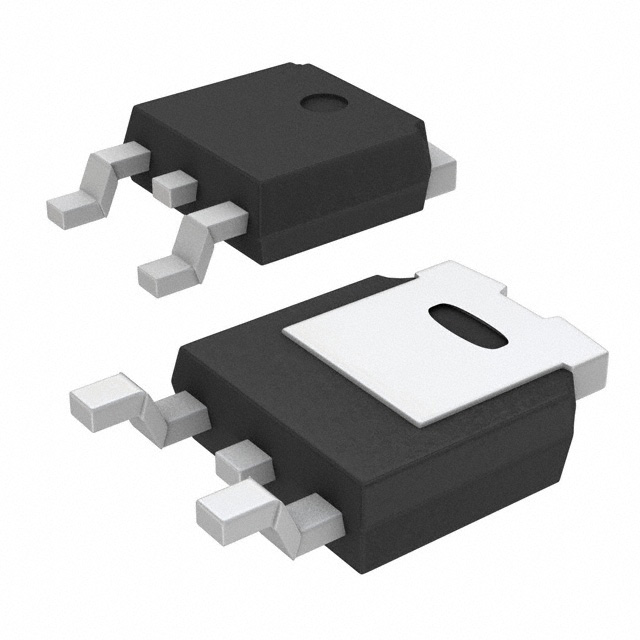

| Package / Case | SC-63, DPAK (2 Leads + Tab), TO-252-3 |
| Ratio - Input:Output [custom] | 1:1 |
| Rds On (Typ) | 60 mOhm |
| Supplier Device Package | DPAK |
| Switch Type | General Purpose |
| Voltage - Load | 36 V |
| Voltage - Supply (Vcc/Vdd) | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
VND7NV04 Series
The VNN7NV04, VNS7NV04, VND7NV04 VND7NV04-1, are monolithic devices designed in STMicroelectronics VIPower M0-3 Technology, intended for replacement of standard Power MOSFETs from DC up to 50 kHz applications. Built in thermal shutdown, linear current limitation and overvoltage clamp protect the chip in harsh environments.
Fault feedback can be detected by monitoring the voltage at the input pin.
