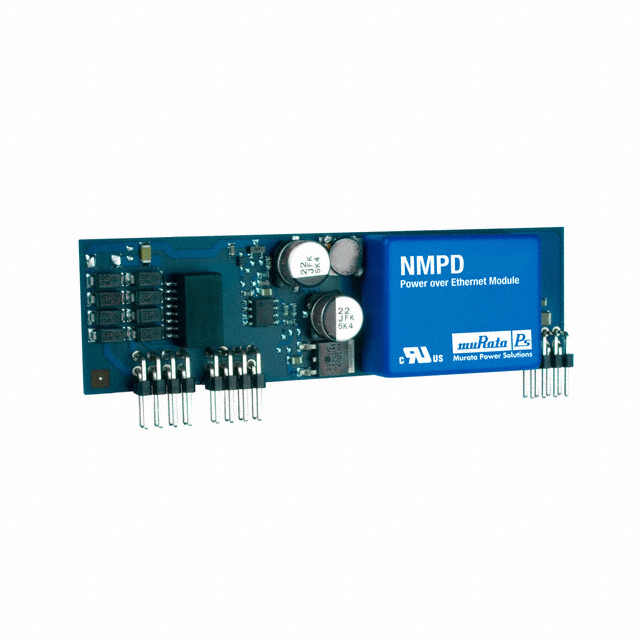

NMPD0105C
ObsoleteMurata Power Solutions Inc.
ISOLATED THROUGH HOLE DC/DC CONVERTER, POE, ITE, 2:1, 9.75 W, 1 OUTPUT, 5.1 V, 2 A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NMPD0105C
ObsoleteMurata Power Solutions Inc.
ISOLATED THROUGH HOLE DC/DC CONVERTER, POE, ITE, 2:1, 9.75 W, 1 OUTPUT, 5.1 V, 2 A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NMPD0105C |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 2 A |
| Efficiency | 77 % |
| Features | OTP, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | 12-SIP Module |
| Power (Watts) | 10 W |
| Size / Dimension [x] | 3.62 in |
| Size / Dimension [x] | 91.9 mm |
| Size / Dimension [y] | 0.57 in |
| Size / Dimension [y] | 14.5 mm |
| Size / Dimension [z] | 1.06 in |
| Size / Dimension [z] | 26.9 mm |
| Type | Isolated PoE (Power over Ethernet) Module, Isolated PoE Module |
| Voltage - Input (Max) [Max] | 57 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 5.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each | 1 | $ 39.79 | |
| 5 | $ 39.31 | |||
| 10 | $ 38.72 | |||
| 25 | $ 38.26 | |||
| 50 | $ 37.26 | |||
| 100 | $ 35.36 | |||
Description
General part information
NMPD01 Series
ISOLATED THROUGH HOLE DC/DC CONVERTER, POE, ITE, 2:1, 9.75 W, 1 OUTPUT, 5.1 V, 2 A
