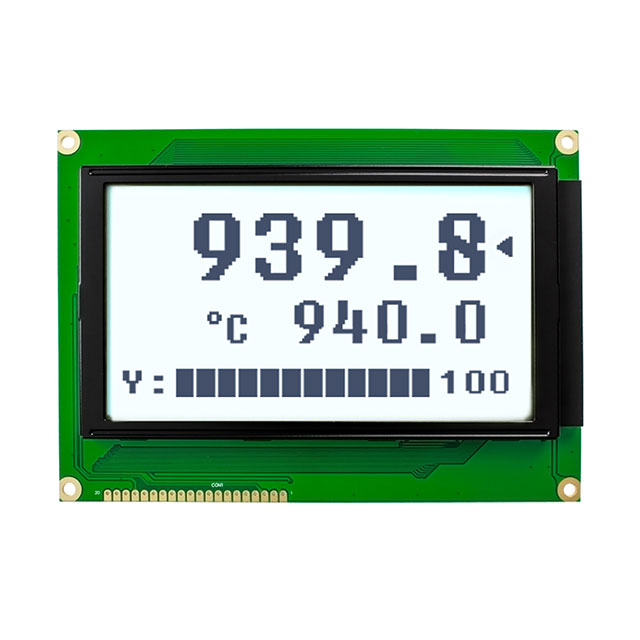

NHD-240128WG-BTFH-VZ#

Active

Newhaven Display Intl

LCD MOD GRAPH 240X128 WH TRANSFL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet LCD Safe Handling Procedure +1

NHD-240128WG-BTFH-VZ#

Active

Newhaven Display Intl

LCD MOD GRAPH 240X128 WH TRANSFL

Deep-Dive with AI

DocumentsDatasheet LCD Safe Handling Procedure +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-240128WG-BTFH-VZ#

Background Color	White
Background Color	Black
Backlight	LED - White
Controller Type	RA6963
Display Mode	Transflective
Display Type	FSTN - Film Super-Twisted Nematic
Dot Pitch [x]	0.45 mm
Dot Pitch [y]	0.45 mm
Dot Pixels [x]	240 pixels
Dot Pixels [y]	128
Dot Size [y]	0.43 mm
Dot Size [z]	0.43 mm
Graphics Color	Black
Interface	Parallel, 8-Bit
Viewing Area [x]	114 mm
Viewing Area [y]	64 mm

NHD-240128 Series

Part	Background Color	Interface	Dot Pitch [x]	Dot Pitch [y]	Backlight	Controller Type	Dot Pixels [x]	Dot Pixels [y]	Dot Size [z]	Dot Size [y]	Display Mode	Display Type	Graphics Color	Viewing Area [y]	Viewing Area [x]	Viewing Area [z]	Dot Size [x]	Background Color
Newhaven Display Intl NHD-240128WG-BTGH-VZ#	Gray	Parallel 8-Bit	0.45 mm	0.45 mm	LED - White	RA6963	240 pixels	128	0.43 mm	0.43 mm	Transflective	STN - Super-Twisted Nematic	Blue	64 mm	114 mm
Newhaven Display Intl NHD-240128WG-BFGH-VZ#-C		Parallel 8-Bit	0.45 mm	0.45 mm	CCFL	RA6963	240 pixels	128	0.43 mm	0.43 mm	Transflective	STN - Super-Twisted Nematic		64 mm	114 mm
Newhaven Display Intl NHD-240128WG-ATMI-VZ#	Blue	Parallel 8-Bit	0.5 mm	0.5 mm	LED - White	RA6963	240 pixels	128		0.47 mm	Transmissive	STN - Super-Twisted Nematic	Blue White	128 mm		74 mm	0.47 mm	White
Newhaven Display Intl NHD-240128BZ-NSW-BTW-3V3	Blue	Parallel 8-Bit	0.27 mm	0.27 mm	LED - White		240 pixels	128		0.25 mm	Transmissive	STN - Super-Twisted Nematic	White	40 mm	72 mm		0.25 mm
Newhaven Display Intl NHD-240128WG-BTFH-VZ#	White	Parallel 8-Bit	0.45 mm	0.45 mm	LED - White	RA6963	240 pixels	128	0.43 mm	0.43 mm	Transflective	FSTN - Film Super-Twisted Nematic	Black	64 mm	114 mm			Black
Newhaven Display Intl NHD-240128BZ-NSW-BTW	Blue	Parallel 8-Bit	0.27 mm	0.27 mm	LED - White		240 pixels	128		0.25 mm	Transmissive	STN - Super-Twisted Nematic	White	40 mm	72 mm		0.25 mm
Newhaven Display Intl NHD-240128WG-AFTI-VZ#C5		Parallel 8-Bit	0.5 mm	0.5 mm	CCFL	RA6963	240 pixels	128		0.47 mm	Transmissive	FSTN - Film Super-Twisted Nematic		75 mm	129 mm		0.47 mm
Newhaven Display Intl NHD-240128WG-BTML-VZ#	Blue	Parallel 8-Bit	0.45 mm	0.45 mm	LED - White	RA6963	240 pixels	128	0.43 mm	0.43 mm	Transmissive	STN - Super-Twisted Nematic	Blue White	64 mm	114 mm			White
Newhaven Display Intl NHD-240128WG-BTMI-VZ#	Blue	Parallel 8-Bit	0.45 mm	0.45 mm	LED - White	RA6963	240 pixels	128	0.43 mm	0.43 mm	Transmissive	STN - Super-Twisted Nematic	Blue White	64 mm	114 mm			White
Newhaven Display Intl NHD-240128WG-ATFH-VZ#	White	Parallel 8-Bit	0.5 mm	0.5 mm	LED - White	RA6963	240 pixels	128		0.47 mm	Transflective	FSTN - Film Super-Twisted Nematic	Black	128 mm		74 mm	0.47 mm	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 84.34
		5	$ 79.28
		10	$ 74.22
		50	$ 70.00
		100	$ 69.89

Description

General part information

NHD-240128 Series

Graphic LCD Display Module Transflective Black (White - Inverted) FSTN - Film Super-Twisted Nematic Parallel, 8-Bit 240 x 128
