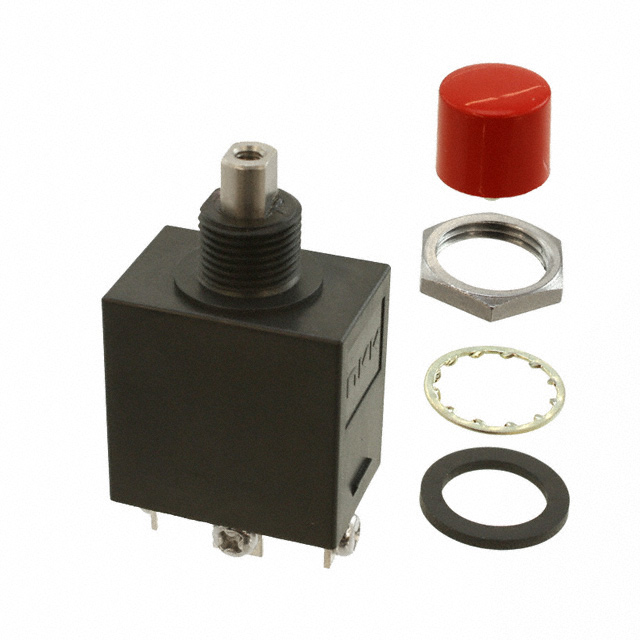

WB12T-DC

Active

NKK Switches

ENVIRONMENTALLY SEALED PUSHBUTTON

Search across all available documentation for this part.

Active

NKK Switches

ENVIRONMENTALLY SEALED PUSHBUTTON

Technical Specifications

Parameters and characteristics for this part

Specification	WB12T-DC

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Red
Current Rating (Amps)	6 A
Electrical Life	15000 Cycles
Features	Stainless Steel
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-On
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Features	Voltage Rating - AC	Termination Style	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Type	Circuit	Actuator Type	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Switch Function	Ingress Protection	Mounting Type	Current Rating (Amps)	Voltage Rating - DC	Mechanical Life
NKK Switches WB12T-DA	Stainless Steel	125 V	Screw Terminal	No Marking	70 °C	-30 ░C	15000 Cycles	Standard	SPDT	Button Round	12.5 mm	Black	On-On	IP67 - Dust Tight Waterproof	Panel Mount Rear	6 A	30 V	30000 Steps
NKK Switches WB12T-DC	Stainless Steel	125 V	Screw Terminal	No Marking	70 °C	-30 ░C	15000 Cycles	Standard	SPDT	Button Round	12.5 mm	Red	On-On	IP67 - Dust Tight Waterproof	Panel Mount Rear	6 A	30 V	30000 Steps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Panel Mount, Rear
