C1302.41.01

Active

Prysmian Group

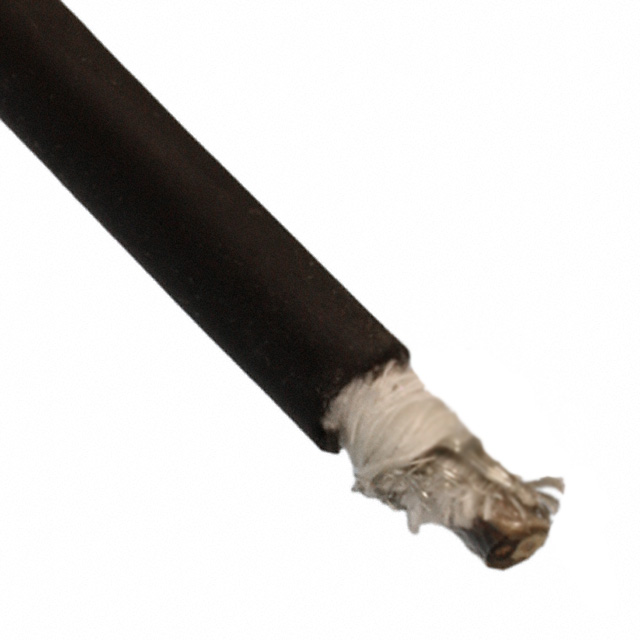

CABLE MIC 2COND 20AWG BLACK

Search across all available documentation for this part.

Active

Prysmian Group

CABLE MIC 2COND 20AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	C1302.41.01

Cable Type	Microphone
Conductor Insulation	Rubber
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG, 26
Jacket (Insulation) Diameter [diameter]	6.86 mm
Jacket (Insulation) Diameter [diameter]	0.27 in
Jacket (Insulation) Material	Rubber
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	80 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Home, Audio-Video
Voltage	300 V
Wire Gauge	20 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Conductor Insulation	Conductor Strand	Wire Gauge	Jacket (Insulation) Material	Shield Coverage	Number of Conductors	Shield Type	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Conductor Material	Cable Type	Shield Material	Voltage	Usage	Length	Length
Prysmian Group C1302.38.01	6.86 mm	0.27 in	0.889 mm	0.035 in	500 '	152.4 m	Rubber	26 34 AWG	20 AWG	Rubber	80 %	2	Braid	-20 C	60 °C	Black	Copper Annealed Tinned	Multi-Conductor	Copper Tinned	300 V
Prysmian Group C1302.41.01	6.86 mm	0.27 in	0.889 mm	0.035 in			Rubber	26 34 AWG	20 AWG	Rubber	80 %	2	Braid	-20 C	60 °C	Black	Copper Tinned	Microphone	Copper Tinned	300 V	Audio-Video Home	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Microphone Cable Black 20 AWG Braid 1000.0' (304.8m)
