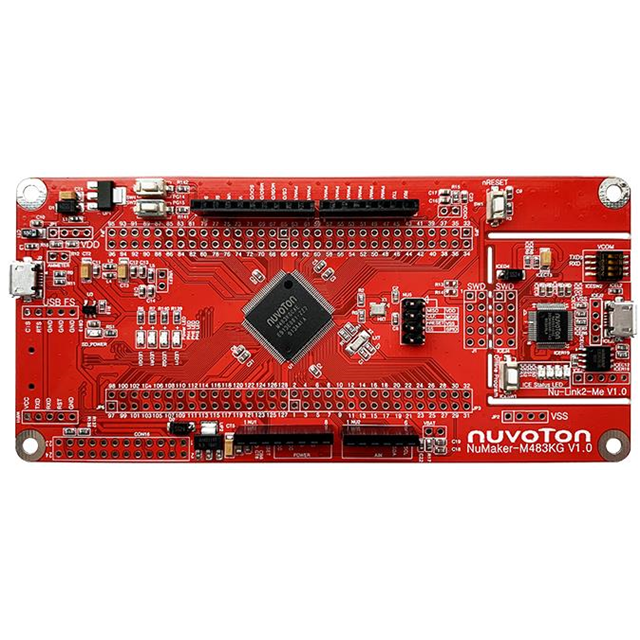

NK-M483KG

Active

Nuvoton Technology Corporation

DEVELOPMENT BOARD OF NUMICRO M48

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NK-M483KG

Active

Nuvoton Technology Corporation

DEVELOPMENT BOARD OF NUMICRO M48

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NK-M483KG

Board Type	Evaluation Platform
Contents	Board(s)
Core Processor	ARM® Cortex®-M4
Interconnect System	Arduino R3 Shield
Mounting Type	Fixed
Platform	NuMaker
Type	MCU 32-Bit
Utilized IC / Part	M483KGCAE2A

M483 Series

Part	Core Size	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Peripherals	Supplier Device Package	Program Memory Size	Package / Case	Connectivity	Oscillator Type	Program Memory Type	Mounting Type	Number of I/O	RAM Size	Speed	Data Converters	Core Processor	Platform	Board Type	Utilized IC / Part	Type	Interconnect System	Contents
Nuvoton Technology Corporation M483KGCAE	32-Bit Single-Core	105 °C	-40 °C	1.8 V	3.6 V	Brown-out Detect/Reset DMA I2S LCD LVR POR PWM WDT	128-LQFP (14x14)	256 KB	128-LQFP	CANbus EBI/EMI I2C LINbus SCI SmartCard SPI USB	External Internal	FLASH	Surface Mount	100 I/O	128 K	192 MHz	A/D 16x12b SAR D/A 1x12b	ARM® Cortex®-M4F
Nuvoton Technology Corporation M483SE8AE	32-Bit Single-Core	105 °C	-40 °C	1.8 V	3.6 V	Brown-out Detect/Reset DMA I2S LCD LVR POR PWM WDT	64-LQFP (7x7)	128 KB	64-LQFP	CANbus EBI/EMI I2C LINbus SCI SmartCard SPI USB	External Internal	FLASH	Surface Mount	52	64 K	192 MHz	A/D 16x12b SAR D/A 1x12b	ARM® Cortex®-M4F
Nuvoton Technology Corporation M483SGCAE2A	32-Bit Single-Core	105 °C	-40 °C	1.8 V	3.6 V	Brown-out Detect/Reset DMA I2S LCD LVR POR PWM WDT	64-LQFP (7x7)	256 KB	64-LQFP	CANbus EBI/EMI I2C LINbus SCI SmartCard SPI USB	External Internal	FLASH	Surface Mount	52	128 K	192 MHz	A/D 24x12b SAR D/A 1x12b	ARM® Cortex®-M4F
Nuvoton Technology Corporation M483KGCAE2A	32-Bit Single-Core	105 °C	-40 °C	1.8 V	3.6 V	Brown-out Detect/Reset DMA I2S LCD LVR POR PWM WDT	128-LQFP (14x14)	256 KB	128-LQFP	CANbus EBI/EMI I2C LINbus SCI SmartCard SPI USB	External Internal	FLASH	Surface Mount	100 I/O	128 K	192 MHz	A/D 16x12b SAR D/A 2x12b	ARM® Cortex®-M4F
Nuvoton Technology Corporation NK-M483KG													Fixed					ARM® Cortex®-M4	NuMaker	Evaluation Platform	M483KGCAE2A	MCU 32-Bit	Arduino R3 Shield	Board(s)
Nuvoton Technology Corporation M483SGCAE	32-Bit Single-Core	105 °C	-40 °C	1.8 V	3.6 V	Brown-out Detect/Reset DMA I2S LCD LVR POR PWM WDT	64-LQFP (7x7)	256 KB	64-LQFP	CANbus EBI/EMI I2C LINbus SCI SmartCard SPI USB	External Internal	FLASH	Surface Mount	52	128 K	192 MHz	A/D 16x12b SAR D/A 1x12b	ARM® Cortex®-M4F

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 28.56

Description

General part information

M483 Series

M483KGCAE2A NuMaker NuMicro® ARM® Cortex®-M4 MCU 32-Bit Embedded Evaluation Board

Documents

Technical documentation and resources
