19411160273

Active

HARTING Technology Group

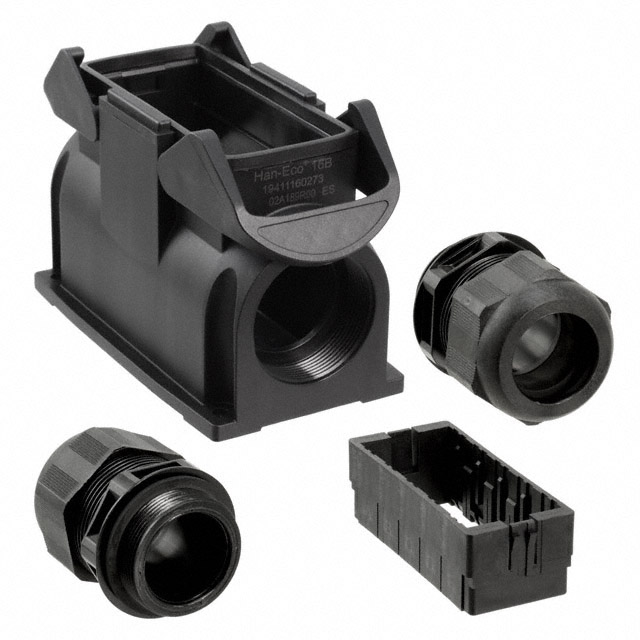

HAN-ECO MODULAR 16B SURFACE MOUNT HOUSING 2XM40 W/ GLANDS (HOLDS CABLE 16-28MM)

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN-ECO MODULAR 16B SURFACE MOUNT HOUSING 2XM40 W/ GLANDS (HOLDS CABLE 16-28MM)

Technical Specifications

Parameters and characteristics for this part

Specification	19411160273

Connector Type	Base - Box Mount
Features	Feed Through
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension [x]	4.685 in
Size / Dimension [x]	119 mm
Size / Dimension [y]	68 mm
Size / Dimension [y]	2.677 "
Size / Dimension [z]	78.2 mm
Size / Dimension [z]	3.079 "
Style	Side Entry

Part	Lock Location	Housing Color	Connector Type	Housing Material	Style	Size	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
HARTING Technology Group 19411160273	Locking Clip (2) on Base Bottom	Black	Base - Box Mount	Polyamide (PA) Nylon Glass Filled	Side Entry	16 B	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Feed Through	68 mm	78.2 mm	3.079 "	4.685 in	119 mm	2.677 "
HARTING Technology Group 19411160233	Locking Clip (2) on Base Bottom	Black	Base - Box Mount	Polyamide (PA) Nylon Glass Filled	Side Entry	16 B	125 °C	-40 °C	IP65 - Dust Tight Water Resistant		68 mm	78.2 mm	3.079 "	4.685 in	119 mm	2.677 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Box Mount Connector Side Entry M40 16B IP65 - Dust Tight, Water Resistant
