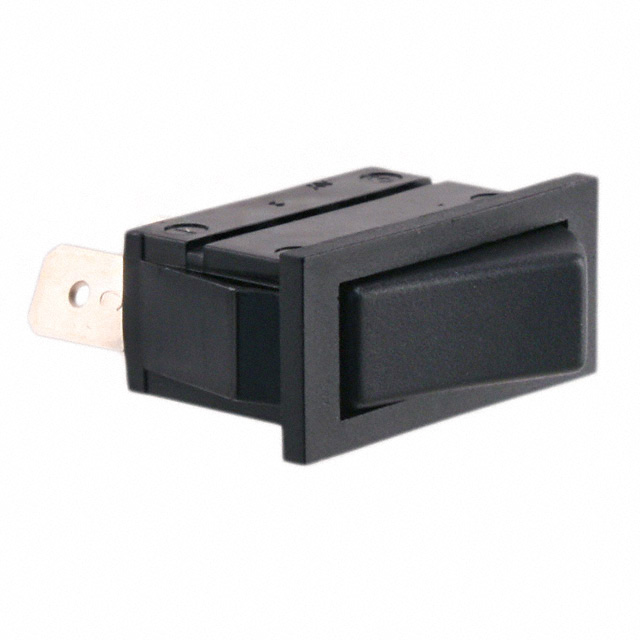

C1300AABB
ActiveBULGIN LIMITED
SWITCH ROCKER SPST 20A 250V
Deep-Dive with AI
Search across all available documentation for this part.
C1300AABB
ActiveBULGIN LIMITED
SWITCH ROCKER SPST 20A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C1300AABB |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Approval Agency | CSA, UL |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 20 A |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 27.3 mm |
| Panel Cutout Dimensions [y] | 12.3 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.59 | |
| 10 | $ 4.10 | |||
| 25 | $ 3.88 | |||
| 50 | $ 3.74 | |||
| 100 | $ 3.56 | |||
| 250 | $ 3.40 | |||
| 500 | $ 3.11 | |||
| 1000 | $ 2.97 | |||
Description
General part information
C1300AA Series
Rocker Switch SPST 20A (AC/DC) 250 V Panel Mount, Snap-In
