7280-6PG-300

Active

Conxall/Switchcraft

CONN RCPT MALE 6POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 6POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	7280-6PG-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	6
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

Part	Applications	Color	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shielding	Contact Finish - Mating	Backshell Material, Plating	Fastening Type	Termination	Number of Positions	Current Rating (Amps)	Voltage Rating	Mounting Feature	Orientation	Primary Material	Contact Material
Conxall/Switchcraft 7280-6PG-300	Automotive Communication Systems Instrumentation	Black	Weathertight	-40 °C	115 °C	Male Pins Receptacle	Unshielded	Gold	Nylon Polyamide (PA)	Bayonet Lock	Crimp	6	Varies by Wire Gauge	600 V	Bulkhead - Front Side Nut	Keyed	Plastic	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

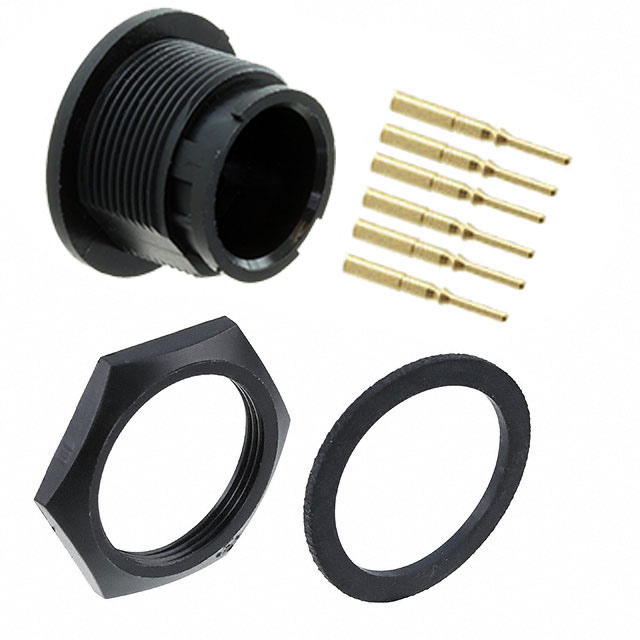

6 Position Circular Connector Receptacle, Male Pins Crimp
