R191842002

Active

Radiall USA, Inc.

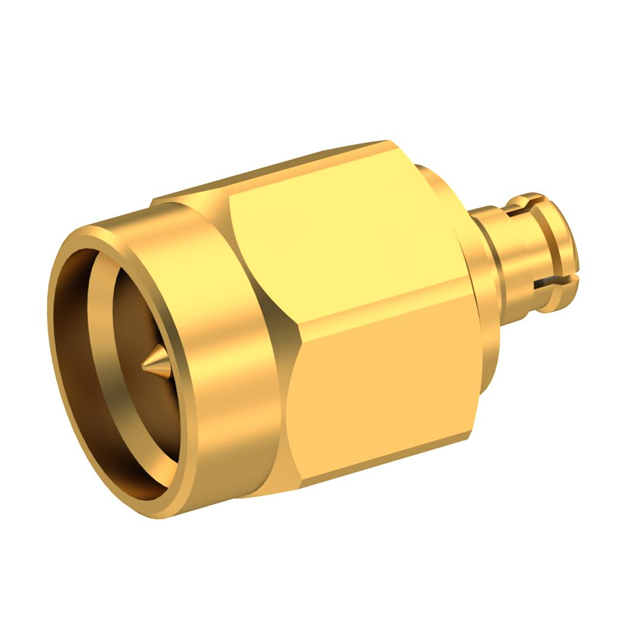

SMA MALE - SMP FEMALE ADAPTER

Deep-Dive with AI

Search across all available documentation for this part.

R191842002

Active

Radiall USA, Inc.

SMA MALE - SMP FEMALE ADAPTER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R191842002

Adapter Series	SMA to SMP
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	Female Socket, SMP Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

R19184 Series

Part	Frequency - Max [Max]	Fastening Type	Body Material	Style	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Conversion Type	Adapter Series	Impedance	Center Contact Material	Dielectric Material	Body Finish	Convert From (Adapter End)	Center Contact Plating	Adapter Type	Convert To (Adapter End)	Features	Center Gender	Connector Style	Center Contact Finish	For Use With/Related Products	Color
Radiall USA, Inc. R191842002W	18 GHz	Snap-On Threaded	Beryllium Copper	Straight	-65 ░C	165 °C	Free Hanging (In-Line)	Between Series	SMA to SMP	50 Ohms	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	SMA Plug Male Pin	Gold	Plug to Jack	Female Socket SMP Jack
Radiall USA, Inc. R191843001	18 GHz	Snap-On Threaded	Stainless Steel	Straight	-65 ░C	165 °C	Free Hanging (In-Line)	Between Series	SMA to SMP	50 Ohms	Beryllium Copper	Polytetrafluoroethylene (PTFE)		Female Socket SMA Jack	Gold	Plug to Jack		Full Detent
Radiall USA, Inc. R191841001W	18 GHz	Snap-On Threaded	Stainless Steel	Straight	-65 ░C	165 °C	Free Hanging (In-Line)	Between Series	SMA to SMP	50 Ohms	Beryllium Copper	Polytetrafluoroethylene (PTFE)		SMA Plug Male Pin	Gold	Plug to Plug		Full Detent	Male to Male
Radiall USA, Inc. R191841001	18 GHz	Snap-On Threaded	Stainless Steel	Straight	-65 ░C	165 °C	Free Hanging (In-Line)	Between Series	SMA to SMP	50 Ohms	Beryllium Copper	Polytetrafluoroethylene (PTFE)		SMA Plug Male Pin	Gold	Plug to Plug		Full Detent	Male to Male
Radiall USA, Inc. R191844800			Brass								Beryllium Copper Brass		Gold							SMA	Gold	SMP Plugs	Gold
Radiall USA, Inc. R191842002	18 GHz	Snap-On Threaded	Beryllium Copper	Straight	-65 ░C	165 °C	Free Hanging (In-Line)	Between Series	SMA to SMP	50 Ohms	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	SMA Plug Male Pin	Gold	Plug to Jack	Female Socket SMP Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 140.41

Description

General part information

R19184 Series

Adapter Coaxial Connector SMA Plug, Male Pin To SMP Jack, Female Socket 50 Ohms

Documents

Technical documentation and resources

No documents available
