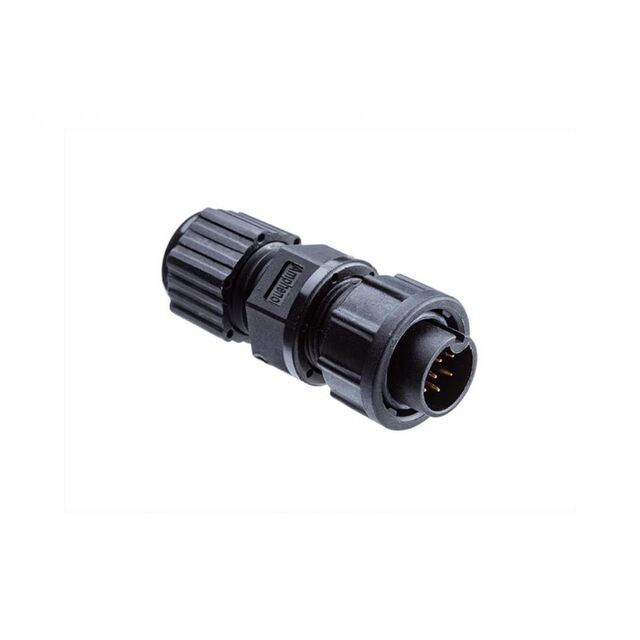

BB-02BFMA-LL7001

Active

Amphenol LTW

CERES, STANDARD SIZE, PLASTIC, 10A, 02 PINS, FEMALE CONNECTOR, MALE CONTACT, STRAIGHT, 2 POINTS LOCK, SOLDER, FIELD INSTALLABLE,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BB-02BFMA-LL7001

Active

Amphenol LTW

CERES, STANDARD SIZE, PLASTIC, 10A, 02 PINS, FEMALE CONNECTOR, MALE CONTACT, STRAIGHT, 2 POINTS LOCK, SOLDER, FIELD INSTALLABLE,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BB-02BFMA-LL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [diameter]	4.5 mm, 6.5 mm
Cable Opening [diameter]	0.256 in, 0.177 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Finish	Nickel
Shell Size - Insert	B
Shielding	Unshielded
Voltage Rating	250 VAC

BB-02BFMA Series

Part	Primary Material	Contact Material	Current Rating (Amps)	Number of Positions	Fastening Type	Shell Size - Insert	Connector Type	Insert Material	Shell Material	Ingress Protection	Orientation	Features	Material Flammability Rating	Termination	Voltage Rating	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Shielding	Contact Finish - Mating	Housing Color	Type	Note	Contact Type	Contact Shape	Backshell Material, Plating	Shell Finish	Cable Opening [diameter]	Cable Opening [diameter]
Amphenol LTW BB-02BFMA-QL8LPP	Plastic	Copper Alloy	10 A	2	Push-Pull	B	Male Pins Plug	Polyamide (PA) Nylon Glass Filled	Glass Filled Nylon Polyamide (PA)	IP68 - Dust Tight Waterproof	Keyed	Backshell	UL94 V-0	Crimp	300 VAC	0.394 in	8 mm	10 mm	0.315 in	Free Hanging (In-Line)	-40 °C	105 ░C	Black	Unshielded	Gold
Amphenol LTW BB-02BFMA-QL8SPP	Plastic	Copper Alloy	10 A	2	Push-Pull	B	Male Pins Plug	Polyamide (PA) Nylon Glass Filled	Glass Filled Nylon Polyamide (PA)	IP68 - Dust Tight Waterproof	Keyed	Backshell	UL94 V-0	Crimp	300 VAC	0.236 in	5 mm	6 mm	0.197 in	Free Hanging (In-Line)	-40 °C	105 ░C	Black	Unshielded	Gold
Amphenol LTW BB-02BFMA-QL8ANP	Plastic			2	Push-Pull	B	Plug Housing	Thermoplastic		IP68 - Dust Tight Waterproof	Keyed	Backshell								Free Hanging (In-Line)	-40 °C	105 ░C		Unshielded		Black	For Male Pins	Contacts Not Included	Crimp	Circular
Amphenol LTW BB-02BFMA-QL8MPP	Plastic	Copper Alloy	10 A	2	Push-Pull	B	Male Pins Plug	Polyamide (PA) Nylon Glass Filled	Glass Filled Nylon Polyamide (PA)	IP68 - Dust Tight Waterproof	Keyed	Backshell Strain Relief	UL94 V-0	Crimp						Free Hanging (In-Line)	-20 C	105 ░C	Black	Unshielded	Gold
Amphenol LTW BB-02BFMA-SL7001	Plastic	Copper Alloy	10 A	2		B	Male Pins Plug	Polyamide (PA) Nylon Glass Filled		IP67 - Dust Tight Waterproof	Keyed	Backshell Coupling Nut	UL94 V-0		250 VAC					Free Hanging (In-Line)	-40 °C	105 ░C	Black	Unshielded	Gold						Nylon Polyamide (PA)	Nickel	4.5 mm 6.5 mm	0.177 in 0.256 in
Amphenol LTW BB-02BFMA-QL8SNP	Plastic			2	Push-Pull	B	Plug Housing	Thermoplastic		IP68 - Dust Tight Waterproof	Keyed	Backshell								Free Hanging (In-Line)	-40 °C	105 ░C		Unshielded		Black	For Male Pins	Contacts Not Included	Crimp	Circular
Amphenol LTW BB-02BFMA-LL7001	Plastic	Copper Alloy	10 A	2	Bayonet Lock	B	Male Pins Plug	Polyamide (PA) Nylon Glass Filled		IP67 - Dust Tight Waterproof	Keyed	Backshell Coupling Nut	UL94 V-0		250 VAC					Free Hanging (In-Line)	-40 °C	105 ░C	Black	Unshielded	Gold						Nylon Polyamide (PA)	Nickel	4.5 mm 6.5 mm	0.177 in 0.256 in
Amphenol LTW BB-02BFMA-LL6001	Plastic	Copper Alloy	10 A	2	Bayonet Lock	B	Male Pins Plug	Polyamide (PA) Nylon Glass Filled		IP66	Keyed	Backshell Coupling Nut	UL94 V-0		250 VAC					Free Hanging (In-Line)	-40 °C	105 ░C	Black	Unshielded	Gold						Nylon Polyamide (PA)	Nickel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.08
		10	$ 9.07
		30	$ 8.55
		50	$ 8.33
		100	$ 8.11
		250	$ 7.23
		500	$ 6.79
		1000	$ 6.01
Newark	Each	10	$ 8.69
		25	$ 7.90
		50	$ 7.41
		100	$ 7.12
		250	$ 6.50

Description

General part information

BB-02BFMA Series

2 Position Circular Connector Plug, Male Pins Solder Cup
