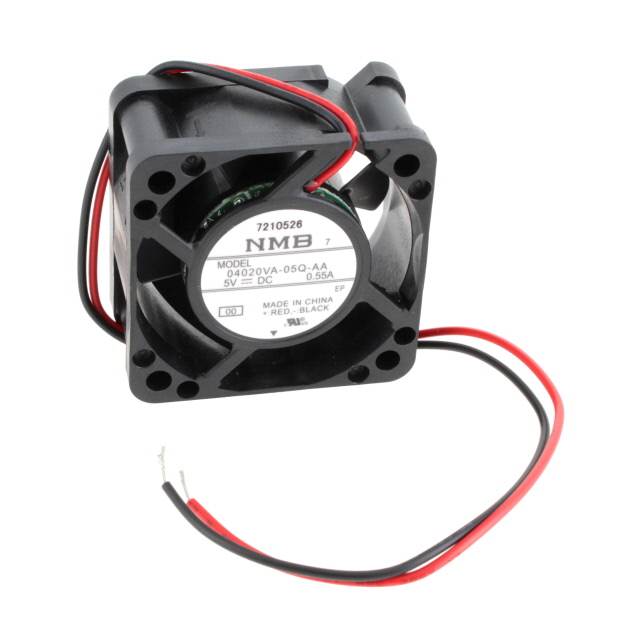

04020VA-05Q-AA-00

Active

NMB TECHNOLOGIES

DC FANS DC AXIAL FAN, 40X40X20MM, 5VDC, 13.4CFM, RIB MOUNT, BALL BEARING, LEAD WIRES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

04020VA-05Q-AA-00

Active

NMB TECHNOLOGIES

DC FANS DC AXIAL FAN, 40X40X20MM, 5VDC, 13.4CFM, RIB MOUNT, BALL BEARING, LEAD WIRES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	04020VA-05Q-AA-00

Bearing Type	Ball
Fan Type	Tubeaxial
Features	Auto Restart
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Termination	2 Wire Leads
Voltage - Rated	5 V
Width [y]	20 mm

04020VA Series

DC Fans DC Axial Fan, 40x40x20mm, 12VDC, 10.2CFM, Rib Mount, 3-Leads, Lock Rotor Sensor

Part	Fan Type	Voltage - Rated	Features	Termination	Width [y]	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Bearing Type	Ingress Protection	RPM	Voltage Range [Max]	Voltage Range [Min]	Weight	Weight	Power (Watts)	Air Flow	Air Flow	Noise	Material - Frame	Static Pressure	Static Pressure	Material - Blade	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Lifetime @ Temp.
NMB TECHNOLOGIES 04020VA-24K-AA-00	Tubeaxial	24 VDC	Auto Restart	2 Wire Leads	20 mm	40 mm	Square	40 mm	Ball
NMB TECHNOLOGIES 04020VA-24Q-CA-00	Tubeaxial	24 VDC	Auto Restart	2 Wire Leads	20 mm	40 mm	Square	40 mm	Ball	IP69K - Dust Tight High Temp Water Jets Waterproof	11000 RPM	26.4 VDC	14 VDC	39.92 g	0.088 lb	2.16 W	0.347 m³/min	12.4 CFM	42 dB	Plastic	142 Pa	0.57 in H2O	Plastic	0.09 A	70 °C	70 °C	-10 °C	-10 °C	100000 Hrs
NMB TECHNOLOGIES 04020VA-05Q-AA-00	Tubeaxial	5 V	Auto Restart	2 Wire Leads	20 mm	40 mm	Square	40 mm	Ball
NMB TECHNOLOGIES 04020VA-24L-AA-00	Tubeaxial	24 VDC	Auto Restart	2 Wire Leads	20 mm	40 mm	Square	40 mm	Ball											Plastic			Plastic		70 °C	70 °C	-10 °C	-10 °C	40000 Hrs
NMB TECHNOLOGIES 04020VA-24K-AL-00	Tubeaxial	24 VDC	Auto Restart Locked Rotor Sensor	3 Wire Leads	20 mm	40 mm	Square	40 mm	Ball											Plastic			Plastic		70 °C	70 °C	-10 °C	-10 °C	40000 Hrs
NMB TECHNOLOGIES 04020VA-12Q-CA-00	Tubeaxial	12 VDC	Auto Restart	2 Wire Leads	20 mm	40 mm	Square	40 mm	Ball	IP69K - Dust Tight High Temp Water Jets Waterproof	11000 RPM	13.2 VDC	9 V	39.92 g	0.088 lb	1.56 W	0.347 m³/min	12.4 CFM	42 dB	Plastic	142 Pa	0.57 in H2O	Plastic		70 °C	70 °C	-10 °C	-10 °C	100000 Hrs
NMB TECHNOLOGIES 04020VA-12K-AA-00	Tubeaxial	12 VDC		2 Wire Leads	20 mm	40 mm	Square	40 mm	Ball			13.2 VDC	7 V	39.92 g	0.088 lb					Plastic			Plastic		70 °C	70 °C	-10 °C	-10 °C	40000 Hrs
NMB TECHNOLOGIES 04020VA-24L-AL-00	Tubeaxial	24 VDC	Auto Restart Locked Rotor Sensor	3 Wire Leads	20 mm	40 mm	Square	40 mm	Ball											Plastic			Plastic		70 °C	70 °C	-10 °C	-10 °C	40000 Hrs
NMB TECHNOLOGIES 04020VA-05Q-AL-00	Tubeaxial	5 V	Auto Restart Locked Rotor Sensor	3 Wire Leads	20 mm	40 mm	Square	40 mm	Ball
NMB TECHNOLOGIES 04020VA-12L-AA-00	Tubeaxial	12 VDC	Auto Restart	2 Wire Leads	20 mm	40 mm	Square	40 mm	Ball

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11.95
		10	$ 11.40
		25	$ 10.72
		50	$ 10.32
		100	$ 9.50
		350	$ 8.89
		700	$ 8.76
Newark	Each	100	$ 14.35
Sager	N/A	1	$ 11.02
		10	$ 10.50
		25	$ 10.03
		75	$ 9.60
		150	$ 9.21
		400	$ 8.84
		1000	$ 8.51
		2000	$ 8.20

Description

General part information

04020VA Series

DC Fans DC Axial Fan, 40x40x20mm, 12VDC, 10.2CFM, Rib Mount, 3-Leads, Lock Rotor Sensor

Documents

Technical documentation and resources
