HARTING Technology Group

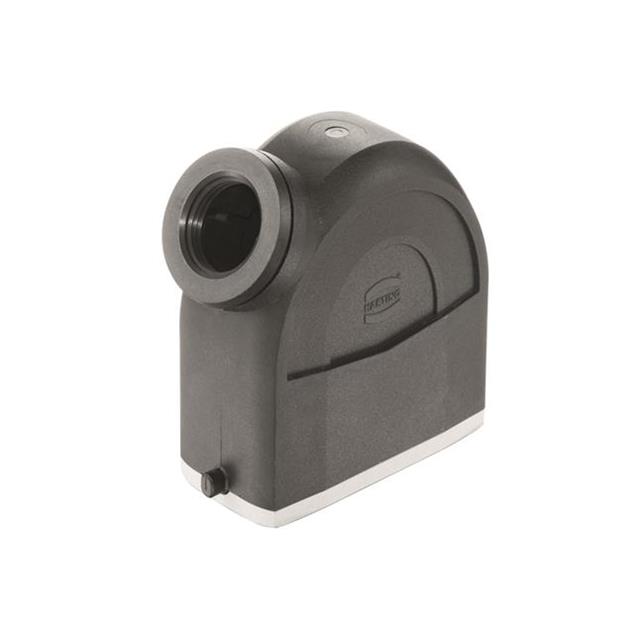

HAN-ECO OUTDOOR 10A-HSE-M20

Search across all available documentation for this part.

Unknown

HARTING Technology Group

HAN-ECO OUTDOOR 10A-HSE-M20

Technical Specifications

Parameters and characteristics for this part

Specification	19462100545

Connector Type	Hood
Housing Color	Black
Housing Material	Polyamide (PA), Nylon
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	A10
Style	Side Entry
Thread Size	M20

Part	Lock Location	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Size	Connector Type	Ingress Protection	Thread Size	Style	Size	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Features
HARTING Technology Group 19462100546	Locking Clip (1) on Base Bottom	Polyamide (PA) Nylon	125 °C	-40 °C	Black	A10	Hood	IP65 - Dust Tight Water Resistant	M25	Side Entry
HARTING Technology Group 19462100545	Locking Clip (1) on Base Bottom	Polyamide (PA) Nylon	125 °C	-40 °C	Black	A10	Hood	IP65 - Dust Tight Water Resistant	M20	Side Entry
HARTING Technology Group 19462100446	Locking Clip (1) on Base Bottom	Polyamide (PA) Nylon	125 °C	-40 °C	Black	A10	Hood	IP65 - Dust Tight Water Resistant	M25	Top Entry
HARTING Technology Group 19462100302	Locking Clip (1) on Base Bottom	Polyamide (PA) Nylon Glass Filled	125 °C	-40 °C	Black		Base - Panel Mount	IP65 - Dust Tight Water Resistant		Bottom Entry	10 A	3.189 in	27 mm	81 mm	40 mm	1.063 "	1.575 in	Cover

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Hood Connector Side Entry M20 A10 IP65 - Dust Tight, Water Resistant
