37_N-SMA-50-1/1--_UE
ActiveHuber+Suhner, Inc.

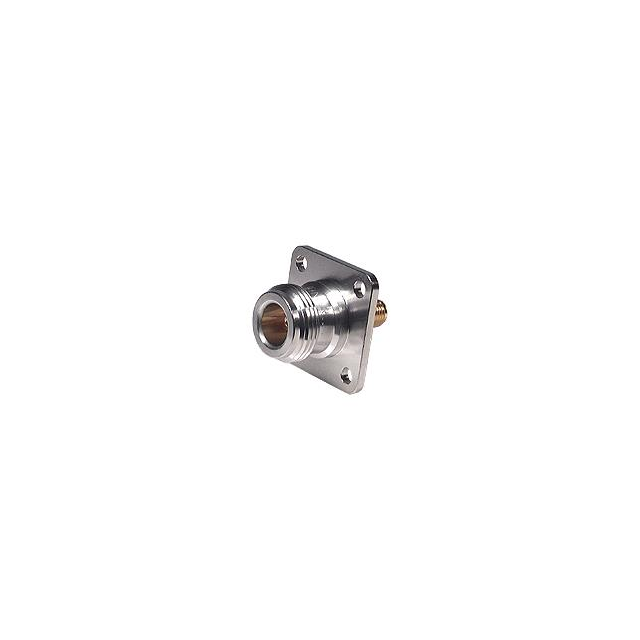

RF ADAPTER, N JACK-SMA JACK, 50 OHM ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 37_N-SMA-50-1/1--_UE |
|---|---|
| Adapter Type | Jack to Jack |
| Body Finish | Gold |
| Body Material | Brass, Beryllium Copper |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Female Socket, SMA Jack |
| Convert To (Adapter End) | Female Socket, N Jack |
| Dielectric Material | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
37_N-SMA Series
Adapter Coaxial Connector SMA Jack, Female Socket To N Jack, Female Socket 50 Ohms
