09148811805

Active

HARTING Technology Group

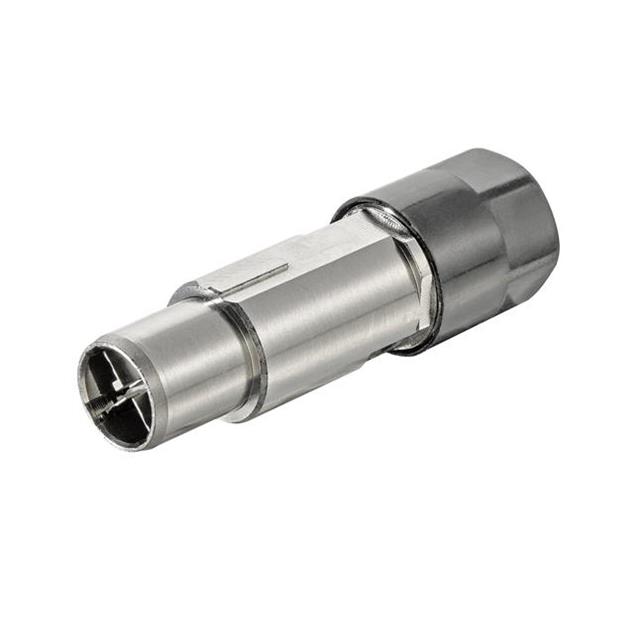

HEAVY DUTY CONNECTOR, HAN-MODULAR SERIES, INSERT, 8 CONTACTS, PLUG

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN-MODULAR SERIES, INSERT, 8 CONTACTS, PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	09148811805

Connector Type	Insert without Contacts
Current Rating (Amps)	0.5 A
Gender	Male
Housing Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Number of Positions	8+Shield
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	32 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Connector Type	Termination Style	Material Flammability Rating	Housing Material	Number of Positions	Voltage Rating	Gender	Contact Type
HARTING Technology Group 09148811805	85 °C	-40 °C	0.5 A	Insert without Contacts	Crimp	UL94 V-0	Liquid Crystal Polymer (LCP)	8+Shield	32 V	Male
HARTING Technology Group 09148811405	85 °C	-40 °C	4 A	Insert without Contacts	Crimp	UL94 V-0	Liquid Crystal Polymer (LCP)	4+Shield	32 V	Male	D-Sub

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert without Contacts 8+Shield Position Crimp
