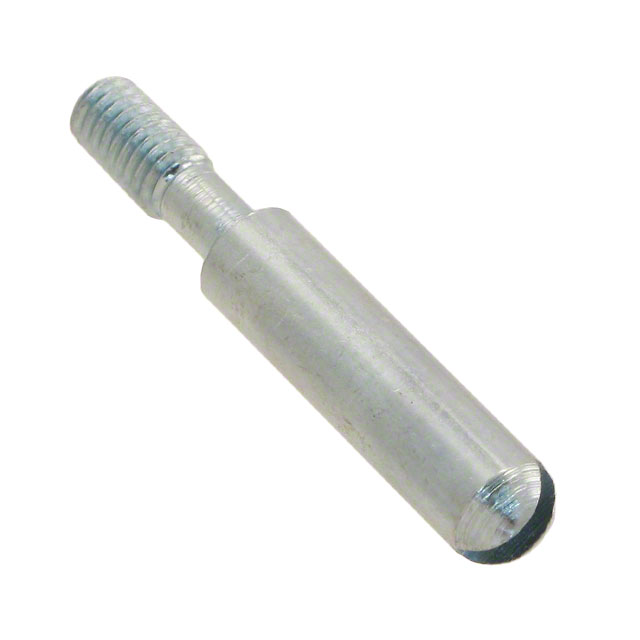

CONNECTOR ACCESSORY, GUIDE PIN, HAN INDUSTRIAL CONNECTORS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09330009908

Active

HARTING Technology Group

CONNECTOR ACCESSORY, GUIDE PIN, HAN INDUSTRIAL CONNECTORS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09330009908

Accessory Type	Guide Pin
For Use With/Related Products	Han® Housings
Specifications	M3 Thread

09330009 Series

Part	Accessory Type	Specifications	For Use With/Related Products	Specifications
HARTING Technology Group 09330009996	PCB Adapter	2 Positions	Han® E Inserts
HARTING Technology Group 09330009973	Marking Strip		Han® ES AV Inserts	64 GSSD
HARTING Technology Group 09330009982	Marking Strip		Han-Snap® Housings	20 Positions
HARTING Technology Group 09330009915	Coding Pin	Red	Han® D Han® DD Inserts
HARTING Technology Group 09330009989	Insert Receiving Frame		10B 16B 24B Inserts Han® 6B
HARTING Technology Group 09330009908	Guide Pin	M3 Thread	Han® Housings
HARTING Technology Group 09330009954	Coding Pin		Han® E Han® EE Han® Q Inserts
HARTING Technology Group 09330009929	Mounting Base Rail Type		Han® E AV and Han® ES AV Inserts
HARTING Technology Group 09330009966	Label Holder		Han® E AV MK Marker Strips	60.3 mm
