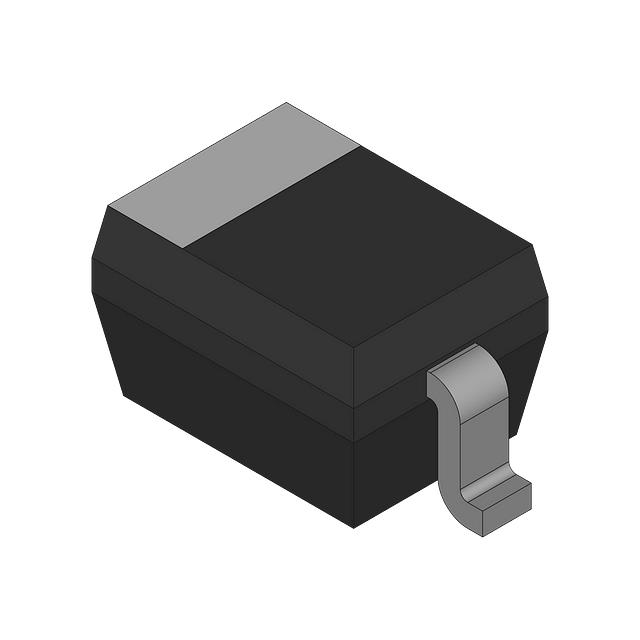

TDZ3V3J,115
ActiveFreescale Semiconductor - NXP
NEXPERIA TDZ3V3J - ZENER DIODE,
Deep-Dive with AI
Search across all available documentation for this part.
TDZ3V3J,115
ActiveFreescale Semiconductor - NXP
NEXPERIA TDZ3V3J - ZENER DIODE,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TDZ3V3J,115 |
|---|---|
| Current - Reverse Leakage @ Vr | 5 µA |
| Grade | Automotive |
| Impedance (Max) (Zzt) [Max] | 95 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SOD-323F, SC-90 |
| Power - Max [Max] | 500 mW |
| Qualification | AEC-Q101 |
| Supplier Device Package | SOD-323F |
| Tolerance | 2 % |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
| Voltage - Zener (Nom) (Vz) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10104 | $ 0.03 | |
| Cut Tape (CT) | 1 | $ 0.32 | ||
| 10 | $ 0.22 | |||
| 100 | $ 0.11 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.06 | |||
| Digi-Reel® | 1 | $ 0.32 | ||
| 10 | $ 0.22 | |||
| 100 | $ 0.11 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.06 | |||
| Tape & Reel (TR) | 3000 | $ 0.05 | ||
| 6000 | $ 0.05 | |||
| 9000 | $ 0.04 | |||
| 30000 | $ 0.04 | |||
| 75000 | $ 0.04 | |||
| 150000 | $ 0.03 | |||
Description
General part information
TDZ3V3J Series
General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package.
