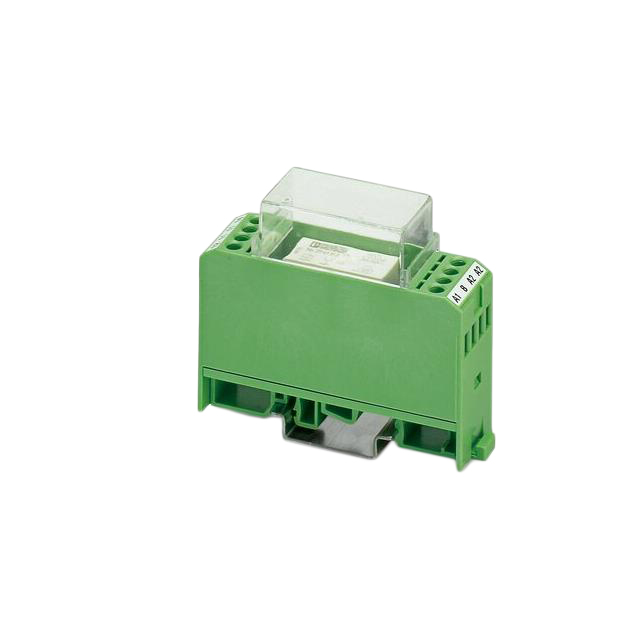

2944795

Active

Phoenix Contact

RELAY MODULE

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY MODULE

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Release Time	Contact Form	Mounting Type	Load - Max Switching	Coil Current	Contact Rating (Current)	Coil Resistance	Features	Switching Voltage	Contact Material	Termination Style	Relay Type	Operate Time	Coil Type
Phoenix Contact 2944782	50 °C	-20 C	24 VAC	11 ms	SPST-NO (1 Form A)	DIN Rail	250 VA 300 W	21 mA	2 A	1.14 kOhms	Lighted Indicator Socket Included	125 VAC 150 VDC	Gold (Au) Silver Palladium (AgPd)	Screw Terminal	General Purpose	7 ms	Non Latching
Phoenix Contact 2944795	50 °C	-20 C	230 VAC	15 ms	DPDT (2 Form C)	DIN Rail		3.5 mA		65.71 kOhms	Varistor	250 VAC 250 VDC	Silver Nickel (AgNi)	Screw Terminal	General Purpose	15 ms	Non Latching

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 132.17

General part information

General Purpose Relay DPDT (2 Form C) 230VAC Coil DIN Rail
