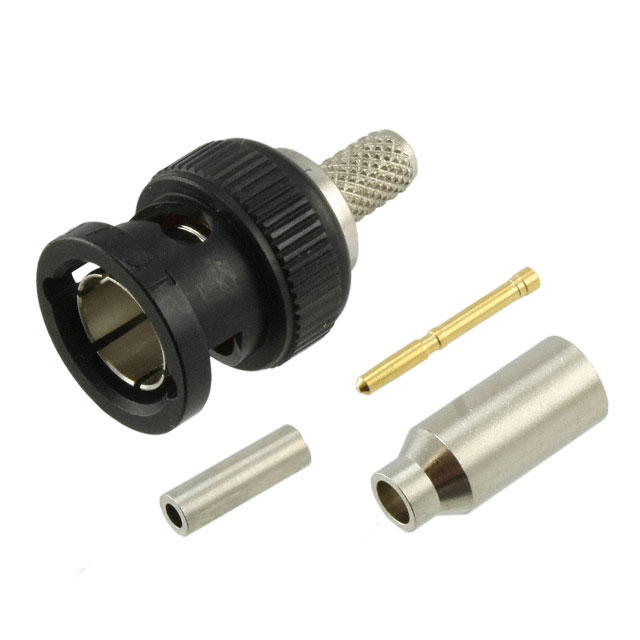

HBC179DT

Active

Winchester Interconnect

CONN HDBNC PLUG STR 75 OHM CRIMP

Search across all available documentation for this part.

Active

Winchester Interconnect

CONN HDBNC PLUG STR 75 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	HBC179DT

Body Finish	Black Nickel
Body Material	Brass
Cable Group	Belden 179DT
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	HD, BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	1 GHz
Housing Color	Black
Impedance	75 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Ingress Protection	Weatherproof
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp
Voltage Rating	500 V

Part	Includes	Body Finish	Fastening Type	Connector Style	Mating Cycles	Body Material	Housing Color	Frequency - Max [Max]	Cable Group	Dielectric Material	Insertion Loss	Contact Termination	Voltage Rating	Shield Termination	Number of Ports	Mounting Type	Connector Type	Impedance	Ingress Protection	Center Contact Material	Center Contact Plating
Winchester Interconnect HBC179DT	1 Connector 1 Contact 1 Ferrule	Black Nickel	Bayonet Lock	BNC HD	500	Brass	Black	1 GHz	Belden 179DT	Polytetrafluoroethylene (PTFE)	0.2 dB	Crimp	500 V	Crimp	1	Free Hanging (In-Line)	Male Pin Plug	75 Ohms	Weatherproof	Brass	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 5.71

General part information

BNC, HD Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
