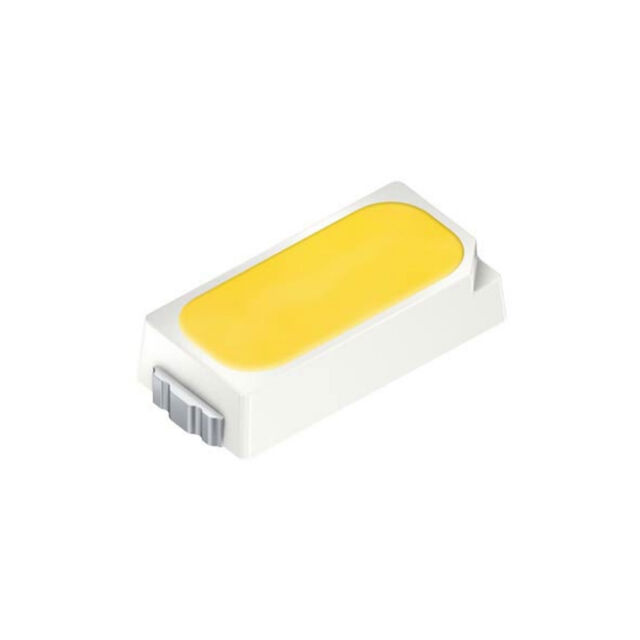

KW DCLMS2.EC-CXCZ-4A7D-1-20-R18
Activeams-OSRAM USA INC.
LED COOL WHITE SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KW DCLMS2.EC-CXCZ-4A7D-1-20-R18
Activeams-OSRAM USA INC.
LED COOL WHITE SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KW DCLMS2.EC-CXCZ-4A7D-1-20-R18 |
|---|---|
| Color | Cool, White |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.8 mm |
| Lens Color | Yellow |
| Lens Style | Oval with Flat Top |
| Millicandela Rating | 3650 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 2.75 mm |
| Size / Dimension [y] | 1.4 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 110 ° |
| Voltage - Forward (Vf) (Typ) | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.35 | |
| 10 | $ 0.19 | |||
| 100 | $ 0.09 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.06 | |||
| Digi-Reel® | 1 | $ 0.35 | ||
| 10 | $ 0.19 | |||
| 100 | $ 0.09 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.06 | |||
| Tape & Reel (TR) | 3000 | $ 0.06 | ||
| 6000 | $ 0.05 | |||
| 15000 | $ 0.05 | |||
| 30000 | $ 0.04 | |||
| 75000 | $ 0.04 | |||
| 150000 | $ 0.04 | |||
Description
General part information
KWDCLMS2 Series
White, Cool LED Indication - Discrete 2.7V 2-SMD, No Lead
