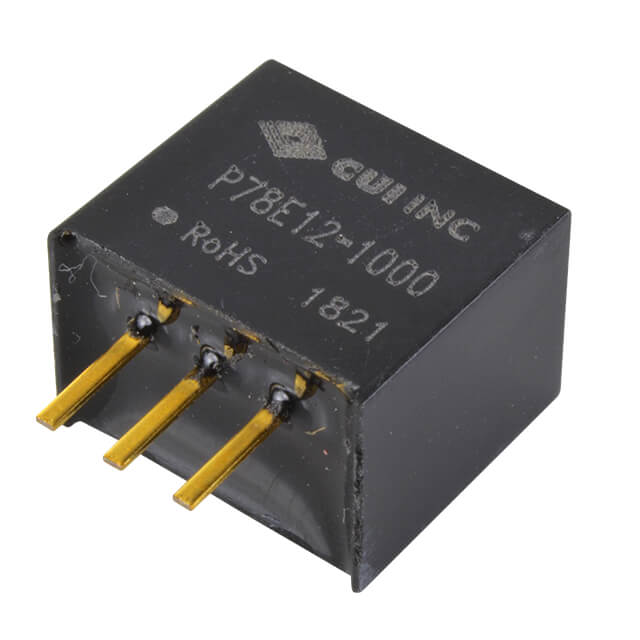

P78E12-1000
CUI Inc.
DC DC CONVERTER 12V 12W
Deep-Dive with AI
Search across all available documentation for this part.
P78E12-1000
CUI Inc.
DC DC CONVERTER 12V 12W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | P78E12-1000 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | 95 % |
| Features | SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 3-SIP Module |
| Power (Watts) | 12 W |
| Size / Dimension [x] | 0.46 in |
| Size / Dimension [x] | 11.6 mm |
| Size / Dimension [y] | 8 mm |
| Size / Dimension [y] | 0.31 " |
| Size / Dimension [z] | 0.41 " |
| Size / Dimension [z] | 10.4 mm |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 16 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.27 | |
| 5 | $ 3.09 | |||
| 10 | $ 3.01 | |||
| 43 | $ 2.85 | |||
| 86 | $ 2.78 | |||
| 129 | $ 2.74 | |||
| 258 | $ 2.67 | |||
Description
General part information
P78E12 Series
Non-Isolated PoL Module DC DC Converter 1 Output 12V 1A 16V - 36V Input
