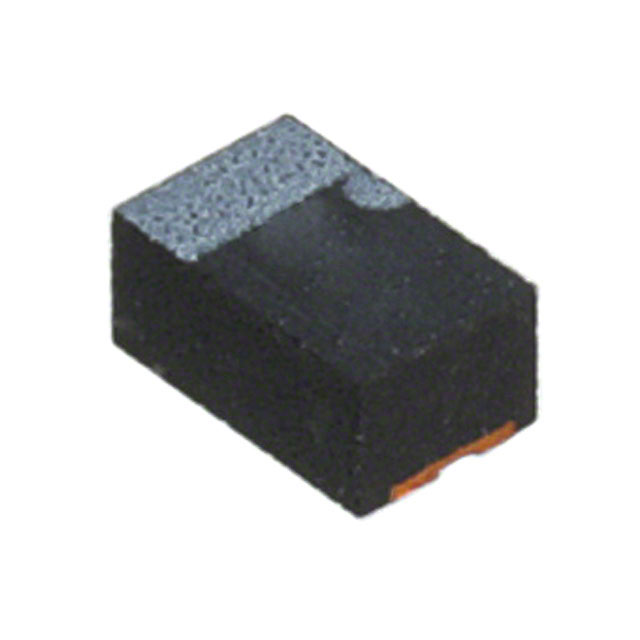

10TPU4R7MSI

Obsolete

Panasonic Industrial Automation Sales

CAP TANT POLY 4.7UF 10V 0805

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

CAP TANT POLY 4.7UF 10V 0805

Technical Specifications

Parameters and characteristics for this part

Specification	10TPU4R7MSI

Capacitance	4.7 µF
ESR (Equivalent Series Resistance)	300 mOhm
Features	General Purpose
Height - Seated (Max) [Max]	0.039 "
Height - Seated (Max) [Max]	1 mm
Lifetime @ Temp.	1000 Hrs
Manufacturer Size Code	S09
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Package / Case	0805
Size / Dimension [x]	2 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	0.049 in
Size / Dimension [y]	1.25 mm
Tolerance	20 %
Type	Molded
Voltage - Rated	10 V

Part	Package / Case	Mounting Type	Type	Lifetime @ Temp.	Tolerance	ESR (Equivalent Series Resistance)	Voltage - Rated	Manufacturer Size Code	Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Features
Panasonic Industrial Automation Sales 10TPU4R7MSI	0805	Surface Mount	Molded	1000 Hrs	20 %	300 mOhm	10 V	S09	4.7 µF	85 °C	-55 °C	2 mm	0.079 in	0.049 in	1.25 mm	0.039 "	1 mm	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4.7 µF Molded Tantalum Polymer Capacitor 10 V 0805 (2012 Metric) 300mOhm @ 100kHz
